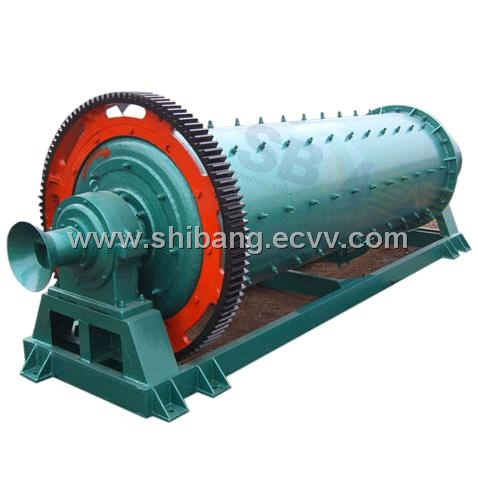

Ceramic Ball Mill

Ceramic ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.

Ceramic ball mill is a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. Our ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.

Ceramic Ball Mill Technical parameter

Model	Speed of bucket (r/min)	Weight of ball	Size of feed opening (mm)	size of outputting feed (mm)	Production (t/h)	Power (kw)	Weight (T)
1830×3000	24	11	≤25	0.075-0.4	4-10	180	28
1830×6400	24	23	≤25	0.075-0.4	6.5-15	210	34
1830×7000	24	25	≤25	0.075-0.4	7.5-17	245	36
2200×5500	21	30	≤25	0.075-0.4	10-22	370	48.5
2200×6500	21	30	≤25	0.075-0.4	14-26	280	52.8
2200×7500	21	33	≤25	0.075-0.4	16-29	475	56
2400×3000	21.6	25.8	≤25	0.075-0.4	7.8-18	245	59.2

Note: This specification is just reference, any changes are subject to the ball mill products.

Post Date:	4/13/2009
Expiry Date:	4/8/2010
Other Price Terms:	CIF, CFR, negotiable
