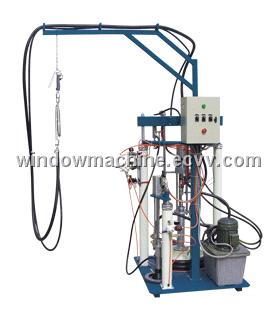

Two-component Sealant Coating Machine

The machine is a special equipment for extruding two-component polysulfide sealant and two-component copper silicon for manufacturing aluminum-frame type insulated glass. Combined hydro-pneumatic drive and noncontact electrical control system is adopted for the main pump and auxiliary pump. It features sensitive switchover, continuous stable sealant extrusion, high production efficiency, easy operation and maintenance. It is an important equipment to manufacture aluminum-frame type insulating glass and curtain wall glass operation.

---

Power Supply	380V 50HZ
Input power	1.5KW
Working Air Pressure	0.5-0.8MPa
Max. air consumption	0.5m3/min
Mixed rate	6:1-14:1
Base material barrel	55 gallon (200L)
Curing agent barrel	5 gallon (20L)
Max. rubber estruding pressure	20MPa
Outside dimension	1250*1100*2500mm
Weight(about)	680Kg
