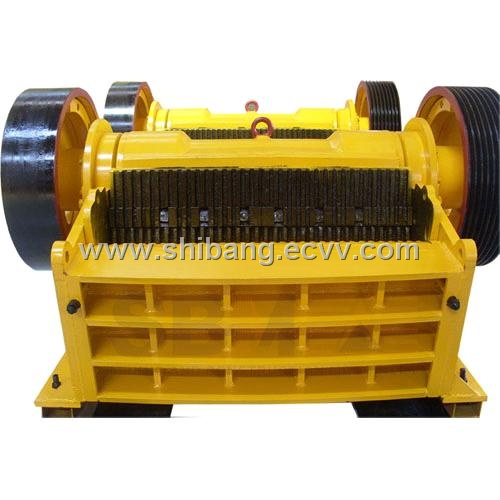

China Jaw Crusher

Characteristics of the JC Series of China Jaw Crushers:
1, World-class skills in making are adopted and the use of high-tech materials.
2, More advanced movable jaw assembly makes it more long-lasting.
Movable jaw assembly adopts a high-quality steel casting, and moves through two large cast steel flywheel drive. In addition, heavy eccentric shaft has also adopted forging billet for processing. All those make the JC series of jaw crushers with exceptional reliability.
3, Integrated Cast Steel Structure Adopted in Axle Bearing housing.
Integrated cast steel structured axle bearing housing can guarantee to be perfectly cooperating with the crushing frame. Meanwhile, it greatly enhances the intensity of the axle bearing, which could not be performed in the separated styled axle bearing.
4, Use of finite element analysis technology makes the crusher with high intensity.
5, Summarized structure V adopted in the crushing cavity makes the actual feed mouth width equal to the set width of the feeding opening.
6, More quickly and convenient adjustment at the discharging opening.
European styled JC series of Jaw Crushers are equipped with wedge adjustment devices, which is simpler, safer and faster than former gasket devices.
7, Chosen bearings are larger with better carrying capacity.
Compared with the same specification of crushers, all JC series of jaw crushers are equipped with greater and more durable eccentric shaft bearings. The better carrying capacity and the more effective labyrinth seal greatly extend the service life of the bearings.
8, the newly-adopted tooth-boards have greatly increased the effective length of the jaw, resulting in larger yield.

China Jaw Crusher Specification

Parameter   Model Content		JC1302	JC1003	JC1303	JC604
Feeding Opening(mm)		180×1300	250×1000	250×1300	400×600
Max Feeding Size(mm)		150	220	220	350
Adjustable Range of Discharge Opening(mm)		10-30	20-40	70-100	35-85
Eccentric Shaft Rotation Speed(rpm)		320	330	290	250
Theoretical Producing Capacity(t/h)		12-35	15-50	26-85	15-70
Electric Motor	Model	Y225M-6	Y225M-6	Y250M-6/Y280S-6	Y225M-6
	Power(Kw)	30	30	37/45	30
	Rotation Speed(rpm)	980	980	980	980
Overall Dimension      (L×W×H)		1320×2150 ×1175	1400×1850 ×1310	1450×2150 ×1175	1920×1460 ×1840
Weight(Kg)		6000	5600	6800
Voltage (V)		380	380	380	380
Frequency (Hz)		50	50	50	50

Note: This specification is just reference, any changes are subject to the Jaw Crusher products.

Post Date:	5/7/2009
Expiry Date:	5/2/2010
Other Price Terms:	CIF, CFR, negotiable
