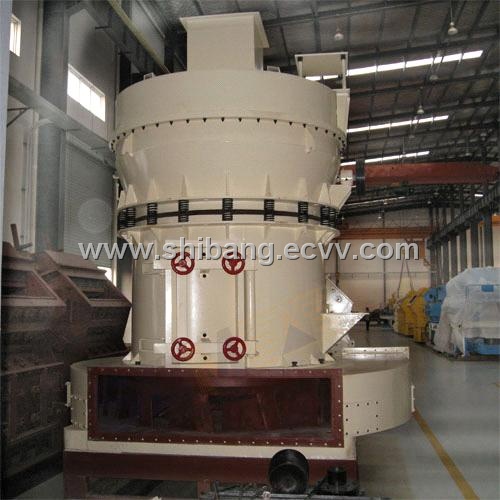

Granulator (Medium Speed Trapezium Mill) Application
Shibang Medium Speed Trapezium Mill is widely used in many
industrial fields, such as building, chemical, chemical fertilizer,
metallurgy, mining, nonmetal, abrasive, bearing materials, ceramic,
steel, thermal power, bricks & tiles, coal industry, etc. The
Medium Speed Trapezium Mill can grind these materials which are 9 or
less on the Meshes scale, and moisture is below 6%., and they should be
non-explosive and non-flammable mining materials. The final size can be
adjusted from 30 to 400 meshes easily. There are thousands of materials
our machine can grind. The typical materials are cement (raw meal and
cement clinker), quartz, feldspar, calcite, gypsum, limestone,
dolomite, graphite, fluorite, aedelforsite, phosphate ore, fused
calcium-magnesium phosphate, car amide, electrolytic manganese metal,
ferromanganese, coal, gangue, slag, zirconium, steatite, granite,
orthoclase, marble, barites, ceramics, glass, etc.
Granulator (Medium Speed Trapezium Mill) Specification
|
Item |
MTM100 |
MTM130 |
MTM160 |
|
Number of roller |
4 |
5 |
6 |
|
Major diameter of roller ×Heightmm |
Φ320×200 |
Φ410×240 |
Φ440×270 |
|
Internal diameter of roller × Heightmm |
Φ980×200 |
Φ1280×240 |
Φ1600×270 |
|
Main engine spindle speedmm |
130 |
103 |
82 |
|
Maximum feeding grain size mm |
<25 |
<30 |
<35 |
|
Grain size of finished product (mm) |
1.6 0.038 |
1.6 0.038 |
1.6 0.038 |
|
Output (t/h) |
3 8.8 |
6 13 |
13 22 |
|
Overall dimension (mm) |
9910×5365×8310 |
7910×7000×9645 |
12550×5700×8355 |
|
Weight(t) |
16 |
26.1 |
35 |
Note: If there is any modification, all parameter and overall dimension are subject to the operating instructions.
