CF(Compact Flash) to 3.5"IDE Adapter Male

CF(Compact Flash) to 3.5"IDE Adapter Male

Contact Now

Detailed Product Description

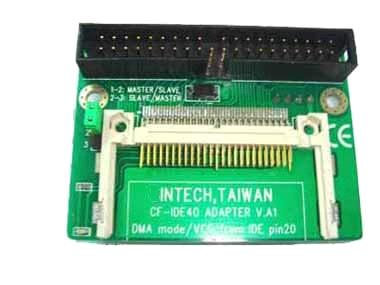

CF(compact flash) to 3.5"IDE adapter for desk PC:40P Male

40PIN MALE DUAL CF SLOT CF To IDE(IDE-CF) Adapter is an adapter for connecting a compact flash memory card to a 3.5'' host interface, aiming at educational sectors, IT development, and the embedded technology enthusiast to enable the use of a compact flash card as an IDE hard drive.Designed throught IDE cable into the IDE port of any processor board, the small form factor of this adapter can be easily mounted inside any system.
Specification & Features
>	Support high speed CF in this adapter
>	Very helpful for embedded system designers and engineers
>	No driver required
>	Master / Slave mode selection
>	Male , 40-pin IDE connector with 4-pin power connector on-board
>	You can boot from Dos/Windows/Linux with CF, same as IDE hard drives, but much faster Master/Slave jumper ,with DMA MODE,support CFI/CFII cards
>	Power input: +5V, floppy disk Drive power connector

DATASHEET:

Interface:	40-pin IDE 3.5"
Supported media	Type I/II CF and MicroDrive
Maximum Read / Write Speed:	Depends on the media
OS Support:	DOS, Windows 3.1, NT, 98SE, Me, 2000, XP, Vista, Mac OS 8.6 or higher, Linux
Dimensions:	(W x D x H) - 44 x 16 x 61 mm for 40-pin IDE
Power:	+3.3V from PC power supply
Storage Temperature:	-20 °C to + 60 °C
Storage Humidity:	5 - 90%

Post Date:	5/17/2009
Expiry Date:	5/12/2010
