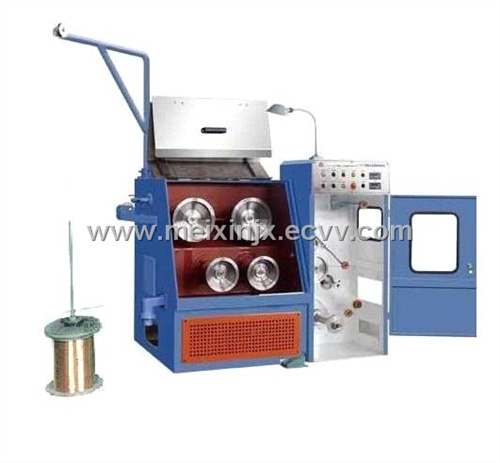

Dies Copper Fine Wire Drawing Machine

1. MAIN TECHNICAL PARAMETER

1.1	inlet diameter(mm)	φ1.17
1.2	outlet diameter (mm)	φ0.1-φ0.3
1.3	drawing line speed(MPM)	2500
1.4	drawing dies No./Max	30
1.5	slip ratio of m/c	15%-10.5%
1.6	fix speed capstan slip ratio	8%
1.7	capstan	ceramic plasma
1.8	capstan dia.(max.)(mm)	φ315
1.9	fix speed capstan dia. (mm)	φ207
1.10	frame	welded by steel plate
1.11	main motor	5.5KW three phase inductor motor
1.12	spooler motor	2.2KW three phase inductor motor
1.13	revise system	PID synchronous spooler
1.14	inverter control	Dual inverter control
1.15	transmission type	by flat belt
1.16	send-out method	over head
1.17	traversing unit	flat belt + synchronous motor
1.18	tension control	weight balance by swing arm
1.19	lubrication system of wire drawing	spray type
1.20	suitable diameter of spool (mm)	φ300
1.21	capacity for wire receiving(kg)	20-30
1.22	bobbin loading & unloading type	shaft type
1.23	power source	380V
1.24	brake	magnetic brake
1.25	machine dimension	1700L×1200W×1850H
1.26	machine weight	2700KG
