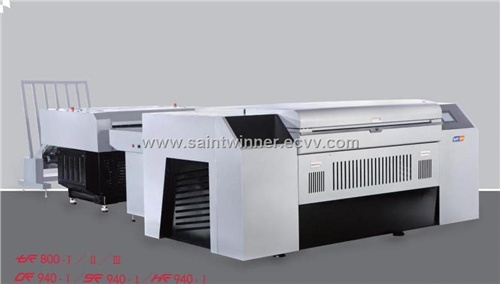

TR800 CTP system

Model： TR800-I TR800-II TR800-III
FOB PRICE:(USD) 73500.00 75000.00 77000.00
Exposure Method External drum thermal technology
Laser Beam 16/32 beams 32 beams  64/32 beams
Optical Spot ±10um;  ±10um;    ±10um;
Plate Loading     automatic and double loading track
Printing Plate Type Thermal plates of 830 nm
Plate Format  Max.940×1160mm, Min.370×450mm
Image Format (mm) 633×830   924×1160   924×1160
Plate Thickness  0.15--0.40mm
Resolution    2540dpi 2540dpi  2540/5080dpi
Repeatability   ±10um
Exposure Speed(2540dpi) 18pcs/h 16pcs/h   24pcs/h
Punching Device   2 pairs & customize
Software    All kinds of workflow with 1-bit tiff output
Enviroment   Temperature 17--30°C; Relative humidity 30%--70%
Power Supply  200--240V AC; 2KW; 10A
Dimensions of main machine 1410(L) ×2560(W) ×1200(H)mm
Weight    1400KG,1500KG

Post Date:	5/25/2009
Expiry Date:	11/21/2009
