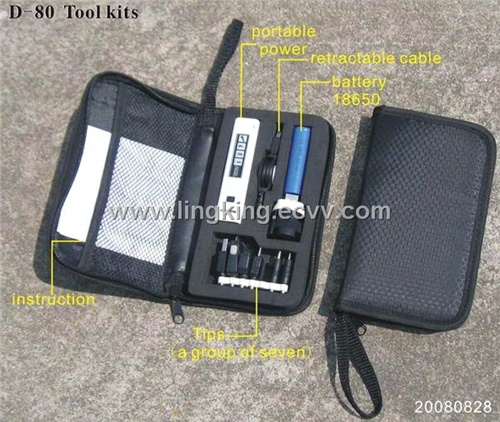

Mobile Portable power
Spcification: 195*110*35mm
Weight: 223g
Charge your electric devices<cellphone,MP4……>
●5.6V output suit 80%
cell phone/MP4/Bluetooth in the market.
●in charging,green led lit,red led shows
battery energy.
●choose the suitable connector for your
device,plug and play.
● your device shows the charging situation
【Feature】
●Battery Ttype:18650Li
●Capacity:3.7V 2200mAh
●Output Voltage:DC5.6V±5% (for cellphone,PSP,ipod etc.)
●Torch:65Luming,5Hours.
●Output Currency:max:450mA±5%.
●Input:5V-500mA±5%.
●Charged Time:5Hours(2200mAh)
●Standby Current:<5uA
【Safe protection】
●Intellectual protection chip: protection for overcharge,
over discharge, overload and short circuit protection.
●Circle life:>500 Times(rechargeable Lithium-Ion battery, up
to more than 500 circles, later the power can still remain 80%)
●Press the button to check the capacity.
●Work temperature:-10℃-40℃
●Stock temperature:-20℃-70℃
●Use of 1W High-intensity LED; 65 lumens constant at Max output.
【Hight power LED torch】
?4 LEDs shows charging(discharging) level:
◆4red LED on: 90%-100% power.
◆3 red LED on: 50%-90% power.
◆2 redLED on: 20%-50% power.
◆1 redLED on: 10%-20% power.
◆Only green on: less than 15% power.
●Push the power switch once ( no repeat)
and it starts to work in two seconds
automatically,( the product have self-
test function)
●In charging,green led lit,red led shows battery energy.
●LED change stop flashing when charging finished
● Connect the portable power
with PC via USB cable to
charge the portable power
or you can use your AC adaptor
(car charger)to charge the
portable power.
【Change Battery】
Don't reverse the position and negative terminals.
Don't discard the battery in fire or heat it.
Don't short-circuit the battery by directly
connecting the positive and negative
terminal with metal objects such wire.
Don't transport and store the battery
together with metal objects such as
necklaces,hairpins etc.
Don't strike or throw the battery.
Don't directly solder the battery and pierce the battery with
a nail or other sharp object.
Help protect our environment,please recycle the battery,
(Batteries can be sold separately)
※Notice:
1)Take out of the battery when the product is not in use.
2)Use high quality,high capacity and low-impedance battery.
3)as the torch light too high,don't exposure to the eye,
super-bright glare can be blinding short-lived.
