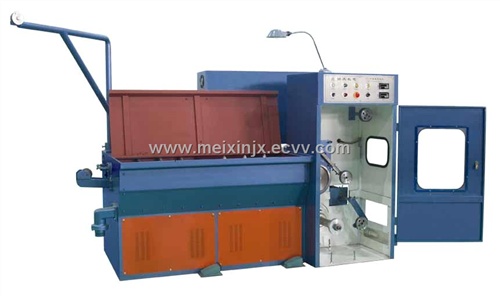

Wire Drawing Machine

Next Product

Detailed Product Description

Wire Drawing Machine MAIN TECHNICAL PARAMETER

1.1	inlet diameter(mm)	0.8-2.0
1.2	outlet diameter (mm)	φ0.25-φ0.8
1.3	Inverter Control	Dual Inverters
1.4	drawing line speed(MPM)	1500
1.5	drawing dies No./Max	20
1.6	slip ratio of m/c	15%
1.7	fix speed capstan slip ratio	8%
1.8	capstan	tungsten
1.9	capstan dia.(max.)(mm)	Φ250
1.10	fix speed capstan dia. (mm)	Φ250
1.11	frame	welded by steel plate
1.12	main motor	18.5KW three phase inductor motor
1.13	spooler motor	5.5KW three phase inductor motor
1.14	revise system	PID synchronous spooler
1.15	inverter control	Dual inverter control
1.16	transmission type	by gear belt
1.17	send-out method	over head
1.18	traversing unit	flat belt + synchronous motor
1.19	tension control	weight balance by swing arm
1.20	lubrication system of wire drawing	spray type
1.21	suitable diameter of spool (mm)	φ300/400
1.22	capacity for wire receiving(kg)	50-80
1.23	bobbin loading & unloading type	shaft type
1.24	power source	380V
1.25	brake	magnetic brake
1.26	machine dimension	2300L×1200W×1750H
1.27	machine weight	2200
