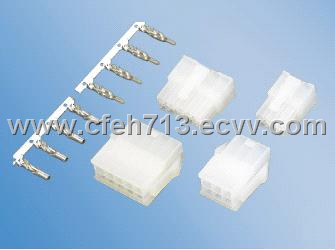

5557.5559 connector[3]
terminal connector,terminal block connector,cable connectorTerminal : FH42000-RT(5556) ; FH42000-R(5557)
Poles:2.4.6.8.10.12.14.16.18.20.22.24
Applicable wires:AWG28#~20#
Applicable PC board thickness:1.6mm
Temperature range:-25~85oC
Voltage rating:300V AC/DC
Current rating:9.0A max
Contact resistance:<15mΩ
Contact resistance:>1000MΩ
Withstand voltage:1500V.AC/(Minute)
Material:(Plug Housing):Nylon66 UL 94V-2
(Receptacle housing):Nylon66 UL 94V-2
Terminal: Phos.Bronze Tin-plated
