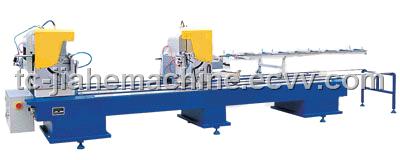

Double Mitre Saw LJZ2A-450X3600
This machine is used cut ALU & PVC profiles any angle from 45°to 90°
Equipped with cutting angle fine adjustment device
straight line feeding type, feeding smoothly
Profile supporter is available on the movable head
Automatic cutting angle change
Cutting angle is adjustable
with the machine head fine adjust device
Cutting twice can complete ∧ cutting.
Input power： Three wire three phase， 380V 50Hz
Cutting Motor： input power 3kW（1.5kW×2）
2800r/min
Operation air pressure： 0.5～08MPa
Air consumption： 30L/min
Cutting length： Max 3600mm
Min 490mm（double head） 290 mm（single head）
Cutting width： 120mm
Cutting height： 120mm
Cutting angle： 45°～90°
Feeding speed: Stepless Speed Adjustment Less than３m/min
Blade specification: Φ450×3.2×Φ30mm
Contour dimension: 6000×1300×1650mm
Machine weight: 1.2T
