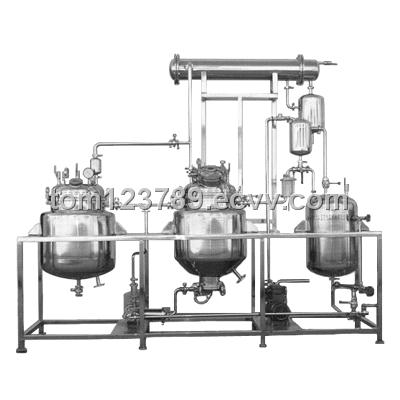

herb extractor

It is used for extracting and concentrating herb, plant,flower,oil and so on  under usual tempreture .

Combining extraction, vacuum concentration and solvent recovery together it is convenient to operate, it save solvent and enhance efficiency. The raw material can be add into machine but the solvent just only add one time. The extraction can be finished by one time and also reduce time. It is specially suitable for sensitive material that can be extracted by high temperature. The temperature can be setted by your choice.  It can be extracted by water or alcohol. It can be extracted by circulation or low temperature. it can be controlled by micro-computer. Four different temperature are showed on PLC so it is convenient to operate. The machine is equipped by special oil-water separator, the light oil and heavy oil can be separated. Furthermore it can recycle alcohol and solvent.

Main Technique Parameter

Model      Items	DTWZ-D-6	DTWZ-D-3	DTWZ-D-2	DTWZ-D-1
Pressure in interlayerMpa	0.1
Pressure in jacketMpa	0.25
Pressure in cylinderMpa	0.6-0.7
Diameter of manhole(mm)	450	400	400	400
Heat area m2	30	12	10	6
Condenser area m2	60	30	20	10
Condenser area m2	1.5	1	1	0.5
Volume m3	6	3	2	0.5
Evaporation capacity Kg/h	2000	1000	700	300

Note: The above data is a standard type, and can make to order according to the special request of customer.
