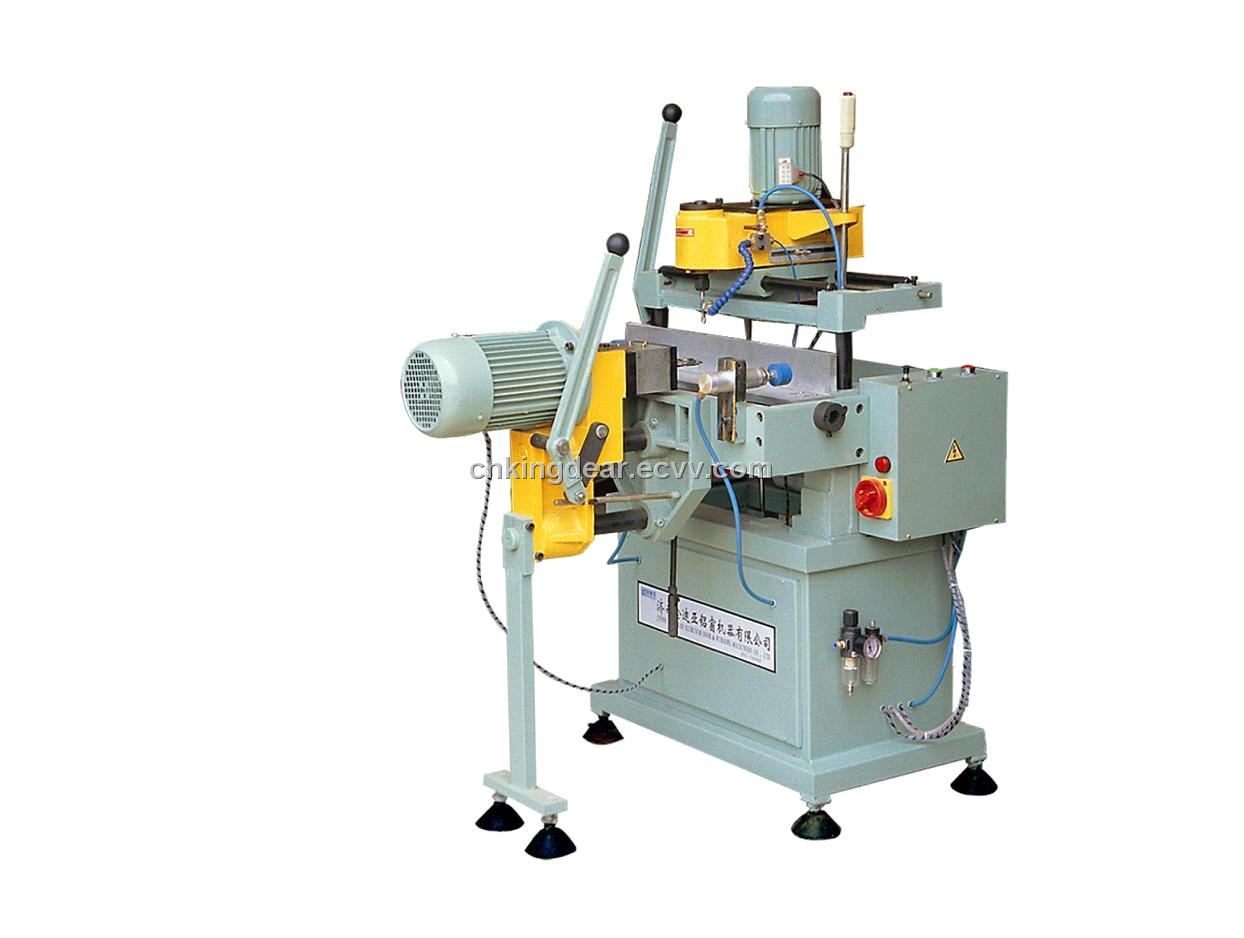

copy routing drilling machine

Equipment feature

■Used for processing lock-holes and grooves on aluminum windows and doors.
■Copy-routing processing is available.

Technical parameters:
1) Power supply: 380V, 50Hz
2) Motor power: 1.85kW
3) Milling cutter diameter: Φ5mm, Φ8mm
4) Drilling diameter: Φ12mm
5) Copy range: 300 x 100mm
6) Working pressure: 0.5-0.8MPa

Processing  accuracy

■Processing hole size error  ±0.20mm
■Processing hole  position error  ±0.30mm
■Processing roughness  Ra12.5um
