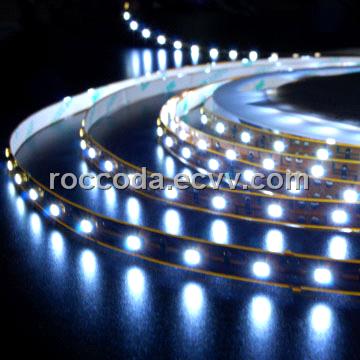

LED ribbon, LED strip

Size: 500mm*10mm*0.2mm printed circuit board

LED Qty: 15 PCS LED (Three chip)

Input Voltage: DC12V

Waterproof: /

Packing:150pcs LED, 5 meter/ reel/bag; 15 reel/carton

Product Specification

Parameter	Symbole	Color	Condition	Min	Typ	Max
Forward Voltage DC	VF	W/P/C	IF 300mA	---	12V	---
Dominant Wavelength	λd	Warm white	IF300mA	3000K	---	4500K
		Pure white	IF300mA	5000K	---	6500K
		Cool white	IF300mA	7000K	---	---
Power	P	W/P/C	IF300mA	---	3.6 W	---
Luminous Flux	?V	Warm white	IF300mA	---	200 lm	---
		Pure white	IF300mA	---	200 lm	---
		Cool white	IF300mA	---	200 lm













Notes: Tolerance of measurement of luminous intensity ±15%.

Operating Environment

Applications:

1) Architectural decorative lighting

2) Archway, canopy and bridge edge lighting

3) Amusement park, theater and aircraft cabin mood lighting

4) Emergency hallway lighting

5) Auditorium walkway lighting

6) Stairway accent lighting

7) Concealed lighting

8) Backlighting for signage letters

9) Channel letter lighting

10) Emergency exit path lighting

11) Cove lighting

     LED Ribbon Strips, LED Strips Light, SMD LED Flex Strips,  LED Ribbon Flex, LED Ribbon Flex Strips, LED SMD Ribbon Strips, LED Strips, SMD 5050 LED Strips, 5050 Flexible LED Strips

Post Date:	7/30/2009
Expiry Date:	7/25/2010
