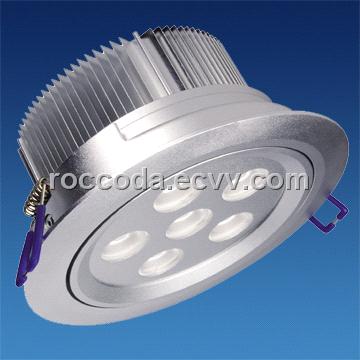

LED Lamp, LED Ceiling light, LED downlight
Input Voltage: 24VAC/DC 100-240VAC
Output Current: 350-700mA
Power: 6*1W/6*3W
Color: WW/CW/Y/R/G/RGB
Beam Angle: 8° 15° 30° 45° 60°
Operation Temperature: -20- + 50 ℃
Fixture Body Temperature: 40 - 60 ℃
Fixture Matereial: Aluminium
Life Span: 50,000 hours
Lamp Head can be adjusted ±30°
Packing:
6*1W 1pcs/color box; 18 pcs/carton, Box size: 135*135*105mm,
Carton Size: 430*430*230mm, N.W: 10.26kg; G.W: 11.96kg
6*3W 1pcs/color box; 18pcs/carton, Box size: 135*135*150mm,
Carton Size: 480*425*290mm, N.W:13.86kg; G.W:15.21kg
6*3W-EDISON-WW
|
CCT |
Beam Angle |
Lumens |
Avr Intensity |
Equivalent Flux |
|
3000K |
30 |
643.6lm |
1129.031cd |
411.4lm |
6*3W-EDISON-CW
|
CCT |
Beam Angle |
Lumens |
Avr Intensity |
Equivalent Flux |
|
6000K |
30 |
769.3lm |
1419.58cd |
615.8lm |
Application
Can be used in huge space like underground garage, library, museums, supermarkets, vestibules, kitchens, washing rooms, storage rooms of hotels, hospitals and residence. Lighting in battery-powered sites like trains, cars, ships etc.
Features:
Adopt high tech energy saving and environmental protection LED as light source which only consume energy 1/10-1/30 of traditional light source. It uniquely allows heat to dissipate properly. Make the products thermally stable for long hours of operations and last much longer.
