CYLINDER BODY BUSHING BORING MACHINE T8210D*20

Main technical parameters



Range of bored hole diameter

φ36-φ200mm

Max.length of cylinder body

2000mm

Main shaft max elongation

300mm/min

400mm/min(T8120Ex20)

Main shaft rotaing speed

200.275.360
480.720.960

（T8120E*20）

Feeding speed

0-180mm/min(sin clase)

Motor power

0.75/1.1kw

Dimension(L x W x H)

3900x700x1500mm

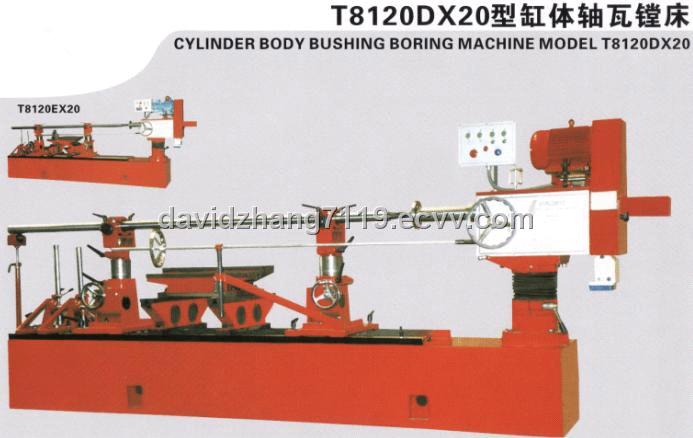

CYLINDER BODY BUSHING BORING MACHINE MODEL T8120D*20



It used for boring main shaft and camshaft bushing hole of the cylinder body.

Structure characters
1、With long travel of tool feeding,which can improve the work efficiency and coxial of bored bushing.
2、The boring bar is special heat treatment,which can improve the rigidity and hardness of the boring bar and working precsion availably.
3、The auto-feeding system adopts stepless adjusting,suits for processing all kinds of materials and hole diameter of the bushing.
4、With special measuring device,it is easily to measure the workpiece.
