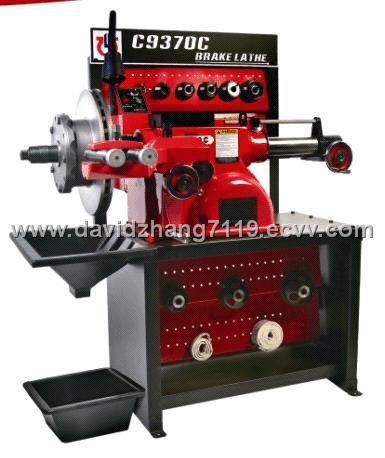

BRAKE LATHE C93570C

Product Detail
SPECIFICATION :

Spindle Travel                          9.875”(251mm)

Spindle Speed                          70, 88, 118RPM

Rotor Diameter                         7”-18” (180mm-457mm)

Rotor Thickness                        4” (102mm)

Drum Diameter                         6”-28” (152mm-711mm)

Drum Depth                             9.875”

Motor                                     110V/220V/380V, 50/60Hz

Shipping Weight                       350KG

Dimension                               1100mmX1070mmX1140mm

Feature :

* The lathe uses precision electric DC servo motors designed to meet the demanding  requirement of industrial motion control .

* The " Change Adapter " system eliminates the need for conventional bell clamps and cones and features built-in springs ensure you don't lose them .

* The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability .

* Infinitely variable spindle and cross feed speed settings allow for quick rough and precision finish cuts .

* A convenient top storage tray means you can easy to take your favorite adapters and tools .

* Separate motors on the drum and rotor feed help maximize the main motor's efficiency .

* The variety of adapters lets you machine all standard and composite rotors for foreign and domestic cars and light trucks .

* Positive rake cutter tip angle provides for a one pass finish virtually every time,  allowing you to complete your work fast .
