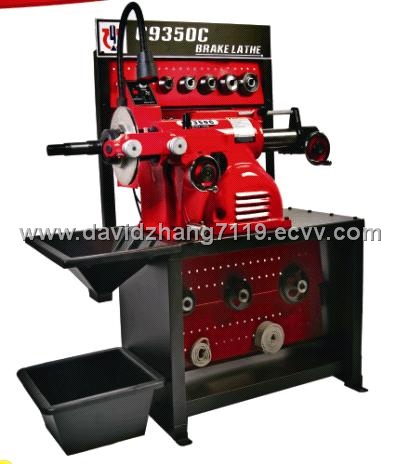

BRAKE LATHE C9350C

Product Detail
 SPECIFICATION :
  Spindle Travel                          6.875”(175mm)
  Spindle Speed                          70, 88, 118RPM
  Rotor Diameter                         7”-15” (180mm-381mm)
  Rotor Thickness                        1-7/8” (48mm)
  Drum Diameter                          6”-28” (152mm-711mm)
  Drum Depth                              9.875”
  Motor                                     110V/220V/380V, 50/60Hz
  Shipping Weight                        350KG
  Dimension                                970mmX920mmX1140mm
 Feature:
 * The lathe uses precision electeic DC servo motors designed to meet the demanding requirement
    of industrial motion control .
 * The precision twin cutter tools and a quick drum to rotor changeover to help increase your
    service capability .
 * Infinitely variable spindle and cross feed speed settings allow for quick rough and precision
    finish cuts .
 * A convenient top storage tray means you can easy to take your favorite adapters and tools .
 * Separate motors on the drum and totor feed help maximize the main motor's efficiency .
 * The variety of adapters lets you machine all standard and composite rotors for foreign and
    domestic cars and light trucks .
 * Positive rake cutter tip angle provides for a one pass finish virtually every time , allowing you
    to complete your work fast .
