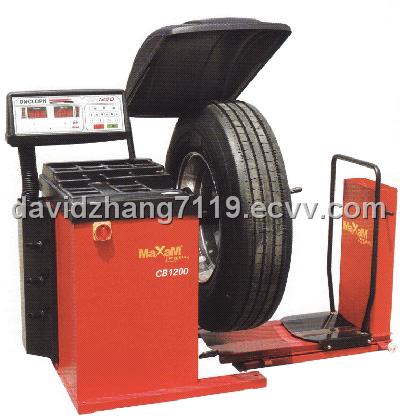

Truck wheel balancer DZ1200

With the expressway development at top speed in the domestic and abroad, more people have the new requirement with tyre balancing of high-speed bus and truck..

CB-1200“Large” version wheel balancer is the special design for the above-mentioned automobiles and also taking account of the big and mini-bus.

International universal standard flange may balance all kinds of tyres such as luxurious buses, trucks and other special objects with the range of max. wheel weight 150kg, rim width 508mm and wheel diameter 1200mm by replacing clamping-positioning devices

“Large” version wheel balancer technical data (CB-1200)

Use range

Automotive repairing company

Transportation company, motorcade

Tyre specialized service station

Rim width

38.1~508mm

Rim diameter

330.2~609.6mm

Max. wheel diameter

1200mm

Max. wheel weight

150kg

Balancing program

Dynamic, static and ALU program

Testing time

8s

Protection cover

(optional)

Pneumatic built-in lift

Supplied

Overall dimensions (width X length) approx

1500*2000mm

Power supply

380V；220V (optional)

Machine weight approx

248kg

Standard accessories (supplied)

International universal standard flange

tapering (diameter range 40-285mm)

Wheel width calipers, Lock nut

Wheel ballast weight pliers
