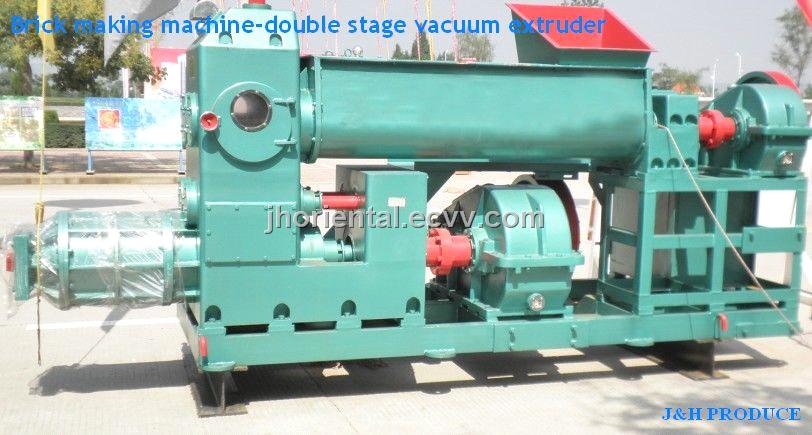

brick making machine-double stage vavuum extruder-JKY60/60-40

brick making  machine-Double-class Vacuum Extruding Machine is suitable for producing all kinds of cell brick with material like gangue, shale, pulverized coal ash as well as clay. The spiral cut reamer of the machine adopt wear-resistance metal spray painting technology; The upper stage mixing shaft, the cut reamer big shaft, the up-down body etc. ate all passed the aging, quenching and tempering process. The reducer gearwheel is the hardened tooth face. Adopting the spiral pressure plate patent technology on the clutch largely prolonged the service life of equipment. At the same time, reasonable design, compact structure , the equipment can work steadily without installing of foundation bolts. It can largely reduce the consumption of vibration in working process

Type JKY60/60-40

Production capacity (pieces/hour)16000-20000

Equipped power (kw) Y6-75/220

Rotation speed of main shaft(r/m) 32/20

Dimension(mm)L×W×H 5450×5960×2700
