operator propelled thermoplastic applicator

Operator Propelled Thermoplastic Applicators

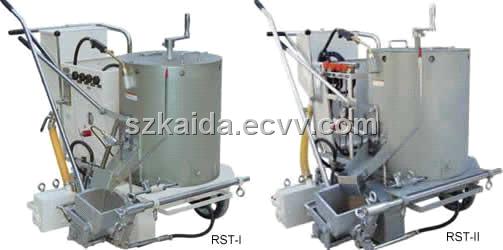

Model: RST-I, RST-II

l. Material tank: With vertical manual agitating device.             Heating temperature:0-260 ℃, freely adjutable.            Capacity: 75kg.             RST-I: Insulating tank, made of antioxidation cold rolled steel with stainless steel jacket.             RST-II: Insulating tank, made of antioxidation cold rolled steel.2. Marking bucket: Screeding structures made of heat-resistant, abrasion-resistant, antioxidation steel. Drawknife is made of tungsten carbide. 3. Heating system: Consist of Valve, furnace, burn nozzle, gas meter, torch and hose, Fueled by one 15kg LPG jar (LPG jar supplied by user). 4 . Glass bead bin: With window for checking beads quantity, capacity:15kg.5. Glass bead dispenser: Automatical quantitative dispensing synchronising with paint screeding system. 6. Framework: Steel welding frame, surface chrome-plated or coated heat-resistant coating. 7. Locking rear swivel caster: locks into straight or radius mode for striping straight line, arc or curves line. 8. Lineation width: 100mm, 150mm, 200mm, 300mm, available by changing marking bucket. 9. Lineation thickness: 1.5-2.5mm, freely adjustable.10. Dimension: 1200mm(L) x 830mm(W) x 1050mm(H).11. Weight: 155kg (with 150mm bucket, exclusing LPG jar).

Option: 400mm or 450mm bucket for zebra-crossing marking.
