Round Vibratory Finishing Machines specially designed for processing of all types of components, including deburring, radiussing, chamfering, grinding, descaling, pickling, degreasing, burnishing, & polishing...working bowl lined with Polyurethane to reduce the collide and prolong bowl working life.
LZG Vibratory Finishing Machines witht a built in spiral ramp bowl (LZGS series) or a helical geometry bowl (LZGC series allow a damage free processing of delicate components ) and separator screen inside, when the completion of processing, a flap is operated either manually or pneumatically, for automatic separation, media and components are delivered over the separation screen and the media returns through the screen to the bowl and components discharge to a collect bin or secondary operation. This series machines are suited for the processing of high production, small components, or flat, lightweight parts which easy stick together. They are also suitable for steel ball burnishing processes.
LZG VibratoryFinishing Machines with curve well
Model Capacity Dimensions Weight Power (L) L x W x H (mm) kg (KW)
LZGC100 100 1170×1100×950 320 1.5
*LZGC100Z 100 1170×1100×950 320 2.2
LZGC150 150 1250×1200×1020 360 2.2
LZGC200 200 1310×1150×950 400 3.0
LZGC300 300 1480×1330×1050 650 3.7
*LZGC300Z 300 1480×1330×1050 650 5.0
LZGC600 600 2000×1800×1350 1400 5.5
*LZCS600Z 600 2000×1800×1350 1400 7.5
* suitable for steel ball burnishing

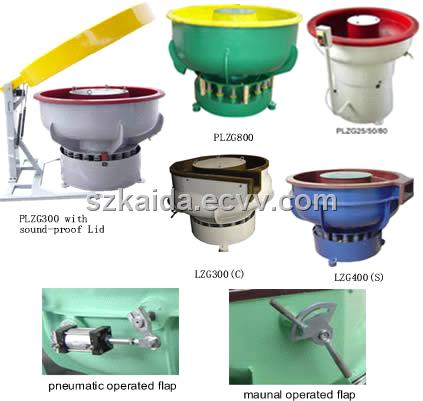

Options： 1.removable separator flap2. manual operated separation flap 3. pneumatic operated separation flap 4. sound-proof lid
5. variable speed controller
|
LZG VibratoryFinishing Machineswith straight well
Model Capacity Dimensions Weight Power(L) L x W x H (mm) (KG) (KW)
LZGS100 100 1300×1150×860 340 1.5
*LZGS100Z 100 1300×1150×860 340 2.2
LZGS300 300 1400×1350×1000 650 3.7
*LZGS300Z 300 1400×1350×1000 650 5.0
LZGS400 400 1480×1430×1100 780 5.0
LZGS600 600 2000×1800×1350 1400 5.5
*LZGS600Z 600 2000×1800×1350 1400 7.5
* suitable for steel ball burnishing
Options： 1.removable separator flap2. manual operated separation flap3. pneumatic operated separation flap 4. sound-proof lid
5. variable speed controller
|
PLZG Vibratory Finishing Machines without internal media/parts separation screen for optimum processing capacity, suitable for processing delicate medium/large components which easy damaged by dam and separation screen, or for a variety of parts of different sizes and batches, where automatic unloading does not have any particular advantage.
PLZG Vibratory Finishing Machines
Model Capacity Dimensions Weight Power(L) L x W x H (mm) (KG) (KW)
PLZG25 25 600 x 600 x 800 85 0.5
PLZG50 50 760 x 760 x 900 110 0.5
*PLZG50Z 50 760 x 760 x 900 110 1.1
PLZG80 80 760 x 760 x 900 100 1.1
PLZG100 100 1050x1050x950 285 1.5
*PLZG100Z 100 1050x1050x950 285 2.2
PLZG200 200 1200x1200x1000 400 3.0
PLZG300 300 1320x1320x930 600 3.7
*PLZG300Z 300 1320x1320x930 600 5.0
PLZG400 400 1430x1430x1100 730 5.0
PLZG600 600 1800x1800x1220 1300 5.5
*PLZG600Z 600 1800x1800x1220 1300 7.5
PLZG800 800 1800x1800x1220 1300 7.5
PLZG900 900 1900x1900x1450 1800 11.0
PLZG1200 1200 2120x2120x1500 2040 11.0
PLZG1500 1500 2120x2120x1550 2100 14.0
* suitable for steel ball burnishing
option 1. Variable speed controller2. Sound-proof lid
