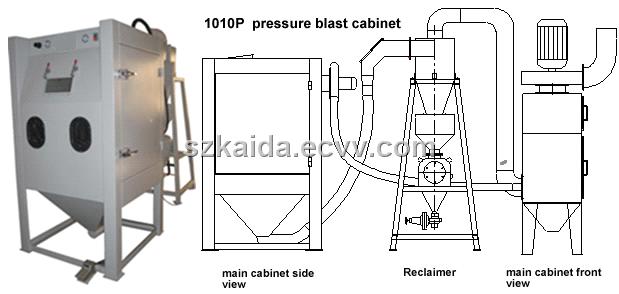

10101P pressure blast cabinet

1010P  Pressure blast cabinet consists of cabinet enclosure, claimer,blast system and dust colletor for tough cleaning, peening,deburring jobs. Compared to suction blasting, pressure blastingdelivers higher abrasive media velocity for greater impactintensity, and can increase production rate by as much as 300percent.It's widely used for process the surface of the forged parts, casting parts, welding parts, components after heat treatment, etc.

Adoptable blasting media: Fused alumina, silicon carbide, garnet, glass bead, etc.

SpecificationMain cabinet: 1000 x 1000 x 1910 mmBlasting room: 950 x 950 x1050/800 mmSide door opening: 750 x 850 mm rightWindow: 500 x 300 mmilluminance: 220V/13W x 2Exhauster: 1.5KWReclaimer system: 900 x 900 x 2150 mmPressure Blasting vessel: 14L, 15-20kg media loadingBlasting nozzle: 1 pc, Boron carbide, dia 8mmDust collector: 745 x 745 x 1650 mmFilter bag: 16 pcsDust Clearing:  Step on the foot switch to start the pneumatic equipment, Press thevibration button to clear away the dust every 4 hours.Compressed air source:  5-7 bar, 0.8-1.2 m3/minOptions 1. Manual turntable.2. Electric turbtable.3. Work car with manual turntable or electric turntable
