Sell suction sandblasting machines

Detailed Product Description

Suction blast cabinets consist of cabinet enclosure, reclaimer and dust-collector, deliver efficient, affordable blast media to clean, peen, debur, or finish metal parts, easy use, low maintenance. Blast cabinet enclose the blasting environment to provide efficient blast cleaning while maintaining a clean surrounding work area.

Options turntable and work can greatly improve productivity and convenience

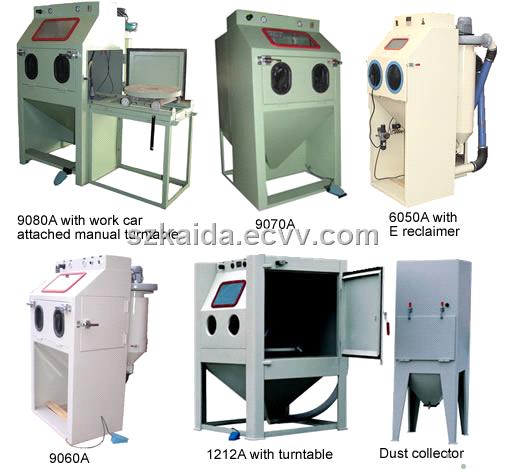

Model No.	Dimension (W x D X H mm)	Blast chamber (W x D X H mm)	Side door opening (W x H mm)	Window (W x H mm)	Power (W)
6050A	600 x 925 x 1600	570 x 430 x 560	400 x 330	240 x 180	250
9060A	900 x 1030 x 1700	870 x 530 x 580	530 x 410	500 x 300	250
9070A	900 x 1125 x 1730	870 x 630 x 650	630 x 480	500 x 300	250
9080A	900 x 1225 x 1800	870 x 730 x 650	500 x 450	500 x 300	250
1010A	1000 x 1325 x 1900	950 x 950 x 850	800 x 900	500 x 300	370
1212A	1200 x 1535 x 1900	1150 x 1150 x 850	950 x 900	500 x 300	370
Blast nozzle	1 pc, boron carbide, dia 8mm
Illumination	13W illuminance
Air Source	pressure:5 - 7bar(kg/cm² ), flow 0. 8- 1.2m³/min each gun
Dust collet	bag filter dust collecting box, pneumatic operated,
Option	1. front door or side door 2. E reclaimer for abrasive mesh 180-320 3. manual turntable 4. automatic turntable 5. work car attached manual turntable or automatic turntable
