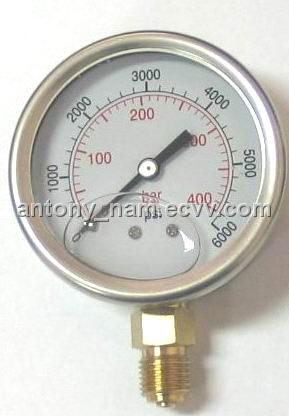

liquid filled pressure gauge, manometer

They are designed for measuring pressures ranges from 0-1bar to 0-1000bar as well as the negative pressure. They can be used with liquids or gasses that do not corrode the copper alloys (bronze), do not have a high viscosity and do not crystallize. The filling of the case with dampening liquid (i.e. glycerin ) allows to use it also in the presence of the vibrations or pulsating pressures.

 l Accuracy class: 2.5%, 1.6%

2. Connection thread: 1/8" 1/4" 1/2" 3/8"inches BSP, BSPT, NPT or according to customers' requirements

 3. Case material: steel, plastic, stainless steel.

4. Dial size: 1 1/2", 2", 2 1/2", 3" , 4" ,6", 8"

5. Window materials: glass, polycarbonate,acrylic glass, plastic, safty glass

 6. Ranges: 0-1bar to 0-1000bar and vacuum

7. Can be filled with dampening liquid

8. Protection degree: IP54.

Connector and movement parts: brass/phosphor bronze or AISI316L, SUS304
