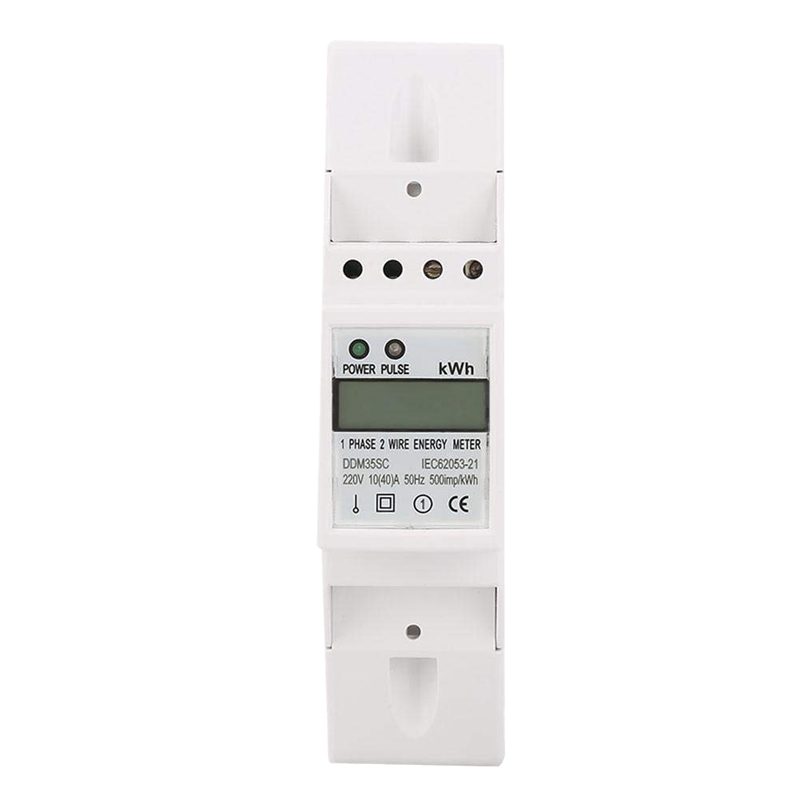

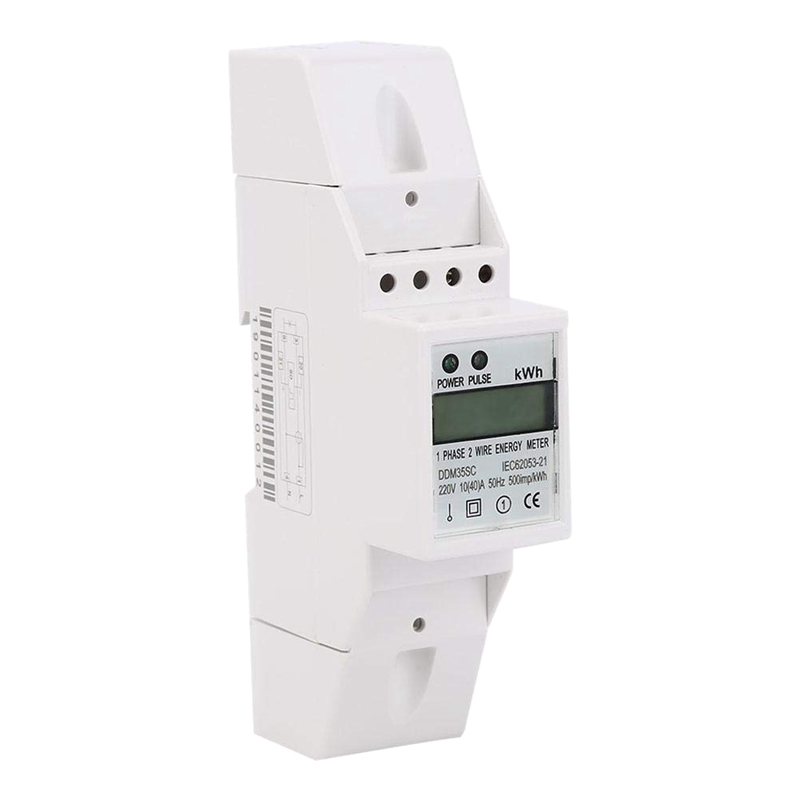

DDM35SC 220V Single Phase 2P LCD DIN Rail KWH Watt Hour Energy Meter 10(40)A

Specifications

Two LEDs indicate power status (green) and energy pulse signal (red)
Standard configuration 5+1 (99999.1KWh) LCD shows active energy consumption
Standard configuration pulse output passive(p olarity), and the remote pulse output passive (non-p olar) can be selected, easy to contact with various AMR systems
Package Size: 15 x 8 x 4cm / 5.9 x 3.1 x 1.6inch
Automatically detect the load current direction, single direction measurement of single-phase two-wire active energy consumption. this is independent of the load current direction.
Direct connection operation, two wiring modes are available. Standard configuration S type wiring or U type wiring can be selected.
Model: DDM35SC
Accuracy: Level 1
Voltage: 220V 50 Hz
Current: 10(40)A Reference Current(Maximum Current)
Insulation Performance: AC Voltage 4KV, 1 Minute, 1.2/50us waveform Impulse Voltage 6KV
Display Mode: LCD (5+1) Display
Installation: DIN Rail Installation
Wiring Mode: Bottom In, Top Out
Material: Plastic
Color: white
Package Contents:
1 * Energy Meter
1 * User manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. the measurement allowed error is +/- 1-3cm.
