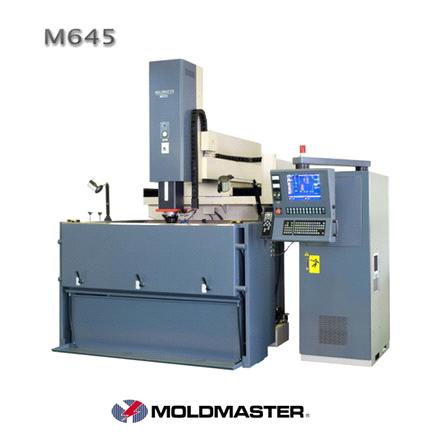

Moldmaster M/S CNC EDM - M645

Supply Ability:	10 Set/Sets per Week
Shipping:	About 60 days later
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Mould-Pipe Fitting

Price:

Min. Order:
Adapter Shell Plastic Injection Mold Tooling Ra...

Price:5,555.00-88,888.00 USD/Set

Min. Order:1 Set
Illuminated Pushbutton Plastic Mould Injection ...

Price:0.55-0.90 USD/Piece

Min. Order:1000 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Tainan City in Taiwan
Packaging Details:	Wooden Case

Specifications

The M-Series machine was designed to meet the rigorous engineering requirements demanded in today's die shop. Its uncompromising level of function, accuracy and quality is consistent with industry standards.

M 645 //

☆ Table dimensions: 1000 x 750 mm
☆ Max. workpiece dimensions: 1400 x 750 x 550 mm
☆ Max. workpiece weight: 2000 kgs
☆ X, Y, Z, axis stroke: 650 x 450 x 500 mm
☆ Machine tool weight: 5660 kgs

Machine Tool Feature //

★ Laser calibration ±3μm/300mm
★ Heidenhain 1μm optical linear scales
★ 4 axis simultaneous machining with optional C axis
★ Digital switching power supply with Super Low Wear
★ Fuzzy adaptive optimizer improve efficiency and safety.
★ Turbo roughing circuit 2~3 times speed
★ Provided Ra 0.2μm CW-Co machining circuit
★ High speed machining circuit improves 30% efficiency without increasing electrode wear ratio
