3D Laser Sub - Surface Engraving Machine

FOB Price:	250000.00 USD/Set

In Stock

Inquiry Now

Related products from verified members

CNC Cylinden Engraving Machine.

Price:4963.00 USD/Set

Min. Order:1 Set
Glass subsurface Engraving Machine

Price:

Min. Order:1 Set

Product Details

Place of Origin:	Moscow in Russian Federation

Specifications

Two 3D Engraving Laser Machines. Specially designed for Crystallex LLC. Composed of original German and Japanese parts. Specially designed software for individual and mass production. Programs help to prepare work files, generate a pointcloud, perform automatic batch conversion. Large collection of unique designs ready to engrave and 3D scanner included. Ready and tested approved and successful retail business concept.

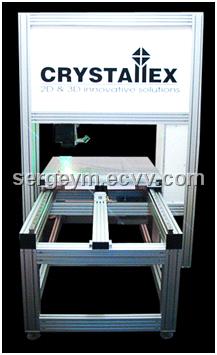

Large machine (C1)

Industrial laser equipment with possibilities for incredibly easy huge automated mass production. Small-scale or big-scale crystals available. Double capacity by using additional loading table. Maximum crystal size 850×900 ×450 mm.

Small machine (C2)

Designed to manufacture individual 3D portraits, a limited size product range, using the equipment at different locations. Appropriate for retail business.

Specifications

	C1	C2
Size	1800×2200×2100 mm	500×500×800 mm
Weight	500 kg	50 kg
Input power	4.5 KW	2.5 KW
Laser wavelength	532 nm	532 nm
Laser type	diode	diode
Laser mode of operation	pulse	pulse
Repeat frequency	2000 Hz	2000 Hz
Average productivity for 2D	1930 pts/sec.	1700 pts/sec.
Average productivity for 3D	1700 pts/sec.	1700 pts/sec.
Control system	servo	step-type
Repeat Accuracy	± 2 μm	± 10 μm
Control type	deflector	deflector
Max. deflector capacity field	38×38 mm, 100×100* mm	60×60 mm
Lens	F-Theta, f=100	F-Theta, f=120
Max. crystal dimensions	1000×1000×500 mm	80×80×100 mm
Max. working area	850×900×200* mm	60×60×80 mm
* extension lens (F-Theta, f=250) increases working area up to 850×900×450 mm
