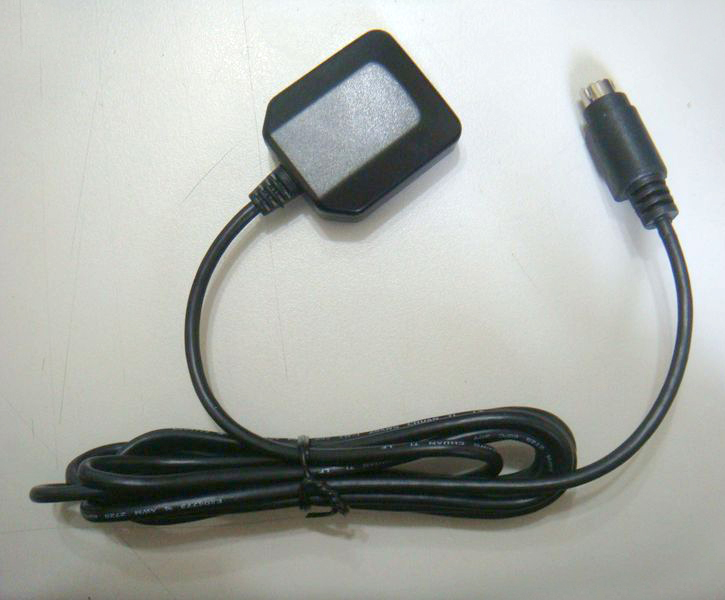

GPS Mouse (Ct-GM451) GPS Receiver TTL/RS232
| FOB Price: | 9.00 - 99.00 USD/Piece |
|---|---|
| Supply Ability: | 100 Piece(s) per Week |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | TAIPEI in Taiwan |
| Packaging Details: | 60PCS/box |
Quick Details
- Hand Orientation: Both Hands
- Interface Type: PS/2
- Products Status: Stock
- Model Number: Ct-GM451 U8
- Brand Name: Connectec
Specifications
Ct-GM451 U8 is a GPS Mouse receiver build-in well-known Ublox 8 GPS chipset.
Ct-GM451 U8 provides customer high position, velocity and time accuracy performances as well as high sensitivity and tracking capabilities. Customers benefit from the strength of both companies.
Thanks to the low power consumption technology, the Ct-GM451 U8 is ideal for many portable applications such as PDA, Tablet PC, smart phone, automotive etc.
Features
Applications
Specifications
Ct-GM451 U8 provides customer high position, velocity and time accuracy performances as well as high sensitivity and tracking capabilities. Customers benefit from the strength of both companies.
Thanks to the low power consumption technology, the Ct-GM451 U8 is ideal for many portable applications such as PDA, Tablet PC, smart phone, automotive etc.
Features
- 72 channel Ublox M8 positioning engine.
- Ultra high sensitivity to -167 dBm.
- GPS L1C/A, SBAS L1C/A, QZSS L1C/A and Galileo E1B/support.
- Supports GLONASS and is ready for Galileo.
- Supports UART, USB and RS232 interface.
- up to 10 Hz update rate.
- LED indicate location fix.
- Ultra low power consumption.<10mW required for TricklePower? Mode
- Ultra miniature 29 x 29 mm dimension
- Operating temperature range: -40 to 85°C
- RoHS compliant (lead-free)
- Water proof (IPX6)
Applications
- Automotive
- Personal/Portable Navigation (PDA)
- Geographic Surveying
- Sports and Recreation
- Marine Navigation
- Fleet Management
Specifications
| Feature | Item | Description |
| General | GPS Chip | U-blox 8 GPS Chip |
| Frequency | L1, 1575.42 MHz | |
| C/A code | 1.023 MHz chip rate | |
| Channels | 72 | |
| Accuracy | Position | 2.5 meters Autonomous |
| 2 meters SBAS | ||
| Time | 1 ms synchronized to GPS time | |
| Datum | Default | WGS-84 |
| Sensitivity | to -167Bm Tracking, Superior Urban Canyon Performance | |
| Acquisition Rate |
Cold Start | 26 sec, average |
| Cold Start ( CGEE* ) | 25 sec, average | |
| Hot Start | 1 sec, average | |
| Adeid Start | 2sec, average | |
Dynamic Conditions |
Altitude | <50,000 m max. |
| Velocity | <500 m/sec (1,000 knots) | |
| Acceleration | <4g | |
| Power | Operation Power | 3.3~5.0 VDC |
| Current Consumption | 40mA(Tracking) | |
| 37mA(Navigation) | ||
| Environmental | Operating Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing | |
| GPS Protocol | Default | NMEA-0183 2.3 compatible with 3.0 |
| Band rate | 9600 bps(default), 4800 | |
| Connector | PS2 6 PIN | |
| Device Size | 42.0 x37.0 x 15.0 mm | |
| Water Proof | IPX6 | |
