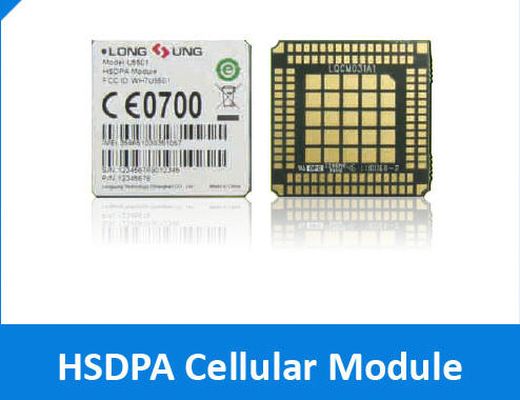

U5501 WIRELESS MODULE WCDMA 3G Module HSDPA Cellular Module

U5501

in areas where HSDPA is not available, it still enable reliable and
Secure data connection over UMTS at speed up to 384 Kbps or EDGE at speed up to 237 Kbps or GPRS at
Speed up to 85.6 Kbps.

Except used as a standard wireless modem through at command, U5501 offers Audio, SMS, MMS,
Phonebook.

General features
  * HSDPA downlink up to 3.6Mbps
  * WCDMA(UMTS) uplink up to 384kbps
  * Dual-Band UMTS (WCDMA/FDD)
    900/2100MHz
  * Quad-Band
    GMS 850/900/1800/1900 MHz
  * EDGE (E-GPRS) multi-slot class 12
  * GPRS multi-slot class 12
  * UMTS/HSDPA 3GPP release 99
  * GSM 3GPP release 99
  * Output power:
     - Class 4 (2 W) for GSM900
     - Class 3 (0.25 W) for UMTS
     - Class E2 (0.5 W) for EDGE900
     - Class E2 (0.4 W) for EDGE1800
     - Class 1 (1 W) for GSM1800
  * Control via at commands
    (Hayes 3GPP TS 27.007 and 27.005)
  * SIM Application Toolkit (release 99)
  * Supply voltage range: 3.3... 4.2V
  * Power consumption:
     - Sleep mode <5mA
     - Power down 50 μA
     - Average Supply Current < 700mA
  * Temperature range
    - Normal Operation: -20°C to +65°C
    - Restricted Operation: -30°C to +75°C
    - Storage: -40°C to +85°C
  * Dimensions: 30.0x30.0x2.5mm

Specification for voice :
  * Triple-rate codec for HR, FR and EFR
  * GSM & 3GPP: Adaptive multi-rate AMR
  * DTMF supported

Support HSDPA data:
  * HSDPA: max. 3.6 Mbps (DL),
  * HSDPA Category 6 supported
  * Compressed mode according to 3GPP
     TS25.212

Specifications  for  UMTS data:
  * UMTS: Max. 384 kbps (DL),
                Max. 384 kbps (UL)

Specifications for EDGE data:
  * EDGE class 12: Max. 237 kbps (DL),
                              Max. 118 kbps (UL)
  * Mobile station class B
  * Coding scheme MCS 1-9

Specifications for GPRS data:
  * GPRS class 12: Max. 85.6 kbps (DL),
                              Max. 42.8 kbps (UL)
  * Mobile station class B
  * Full PBCCH support
  * Coding schemes CS 1-4

Specifications for CSD data:
  * GSM data rate 14.4 kbps, V.110
  * UMTS data rate 57.6 kbps, V.120
  * RLP (Non-transparent mode)

Specifications for SMS
  * Point-to-point MO and MT
  * SMS cell broadcast
  * Text and PDU mode
  * MMS

Special features
  * Improved power-saving modes
  * NDIS/USB driver for Microsoft
    Windows2000/XP/Vista32/64,Windows7
  * RIL/NDIS/USB driver for devices based on
    Windows Mobile5.0 and its Successor
  * USB driver for Linux2.4.X, Linux2.6.X
  * Customer IMEI as variant
  * Firmware update via USB
  * PC_SUITE Auto-installation

Interfaces
  * 116-pin LGA connector
  - Power supply
  - Audio: 2 x analog
  - USB 2.0 high speed
  - USIM/SIM card interface 3 V, 1.8 V
  - UART
  - PCM
  - GPIOs

Approvals

  * RoHS
