Elcom Design Inc.
China Manufacturer with main products: Membrane Switch, Touch Panel, FPC, Silicon-Rubber Keypad, Flex Circuit, Rubber Keys, Touch screen |
Related products from verified members
| Place of Origin: | Taipei in Taiwan |
|---|
Specifications

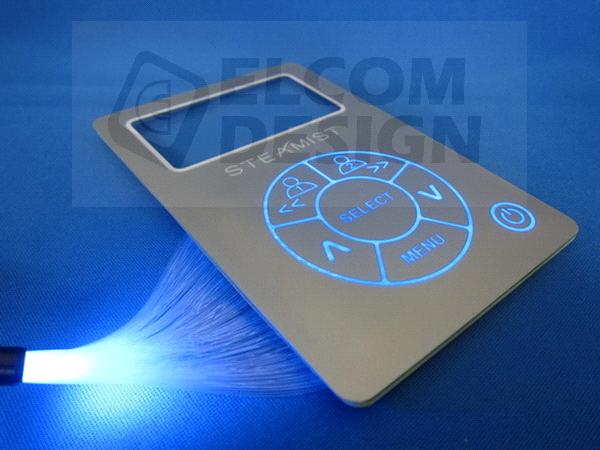

Structure:
(1) Graphic Overlay
(2) PCB w/ Integrated Fiber optics
(3) Metal dome array
(4) Adhesive
Specification of Membrane Switch:
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Actuation Force | Non-tactile 60g to 300g (2oz to 10oz) |
| Tactile 150g to 400g (6oz to 14oz) | ||
| Switch Stroke | Non-tactile 0.1 to 0.5mm | |
| Life Expectancy | Tactile 0.6 to 1.5mm | |
| Non-tactile >5 million actuations | ||
| Tactile >1 million actuations | ||
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance> | 10 ohms to 500 ohms, dependent on size and layout | |
| Insulation Resistance | 100M ohms at 100V DC | |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) | |
| Contact Bounce/td> | ≤ 5 milliseconds |
