Shrouded Bus Bar,Crane Bus Bar,Rail Bus Bar,DSL,Crane Electrification,Festoon System

Inquiry Now

Related products from verified members

High Protection Bus Duct

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	India

Specifications

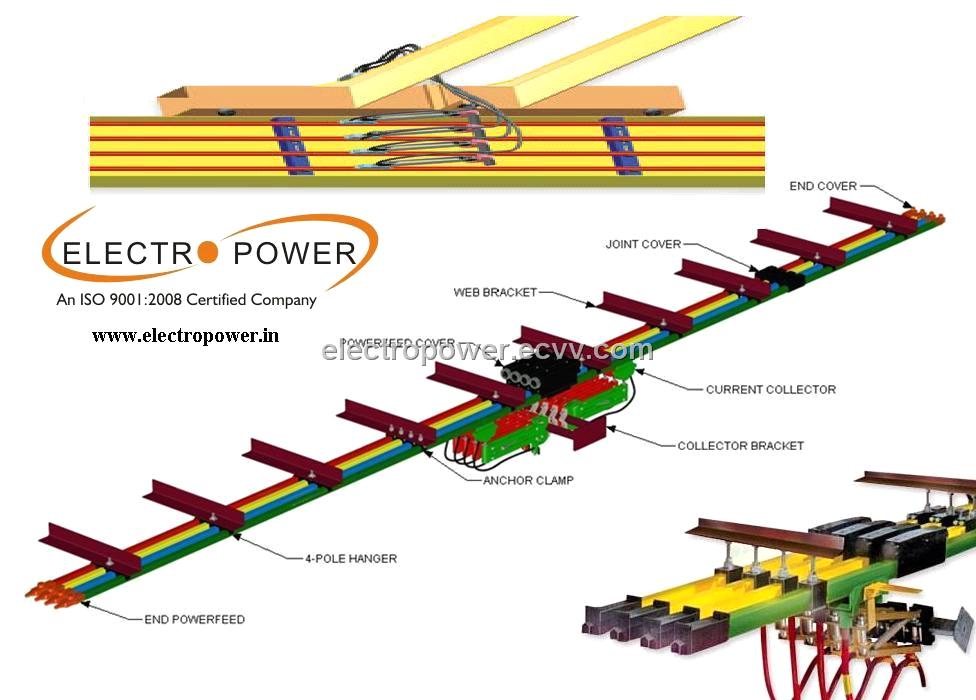

Shrouded Bus bar(DSL) system are used for the electrification of mobile equipment. Shrouded Bus bar is a safe, economical and low maintenance way to solve mobile electrification requirement. Systems can be designed to accommodate 60 to 1200 amperes. Depending on the application there are various options and accessories that can be custom engineered for your conductor bar system. Portions of the system can be pre-assembled at the factory to help ease installation.

Conductor bar can be found on overhead crane runways, hoists, trolleys, conveyors, port cranes and people movers.

›› Cover with ultra violet additive for outdoor sun locations.
›› High temperature cover (280F) for all conductors.
›› Stainless steel conductors in for corrosive atmospheres.
›› Epoxy coated, stainless steel, and insulated hangers for wet an corrosive atmospheres.
›› Factory built expansion sections and anchors for expansion control.
›› Factory bent curved conductor sections systems.
›› A variety of covers for matching competitive systems.
›› Heated conductor systems for ice prevention on outdoor systems or freezer storage.
›› Totally enclosed covers with flap for air-born contaminants, indoor & outdoor versions.
›› Bare conductors available for extreme heat applications.
›› Special long-wear collector brushes for systems.
