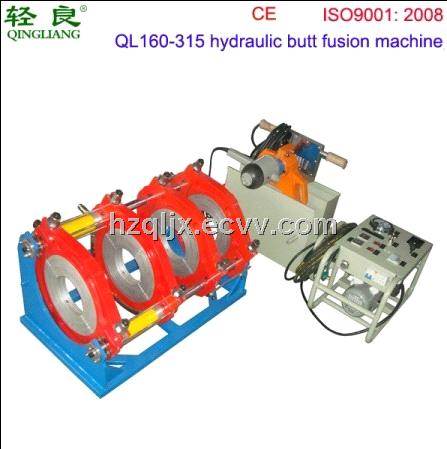

QL160-315 hydraulical pipe welder
| Supply Ability: | 1,500 Piece/Pieces per Month |
|---|---|
| Shipping: | within 20days |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | wooden box |
Specifications
Hydraulically operated butt welding machine, suitable for PE and PP pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strenghth and performance.
Function and Feature
1. Suitable for butt fusion DN160-315PE and PP pipes.
2. It is composed of operating platform, fixture, heating plate and mills
3. The fixture and operating system are separate, easy to operate under the ditch.
4. The fixture has two ferrules, can locate the pipes more accurately, easy to adjust the bit wrong side.
5. Using hydraulic system to control docking pressure, the pressure is more acurate, the operating is more smooth.
6. Using solenoid valve to control the cylinder running, it makes the operating easier and safer.
Technical Specification
Welding specification: DN160,180, 200,225,250, 280,315
Docking deviation: <=0.3mm
Temperature deviation: +-3°C
Total power consumption: 5.8KW
Voltage: 220V
Working pressure of hydraulically system: 0-6Mpa
Working temperature: 225°C+-5°C
Evironment temperature: -5-45°C
The time required to reach soldering temperature: <20min
Materials can be welded: PE, PP, PB, PVDF
