Everbearing Engineering Co., Ltd.
China Manufacturer with main products: Valve, Cast Iron Valve, Ball Valve, Cast Iron Ball Valve, Gate Valve, Check Valve, Butterfly Valve, Globe Valve |

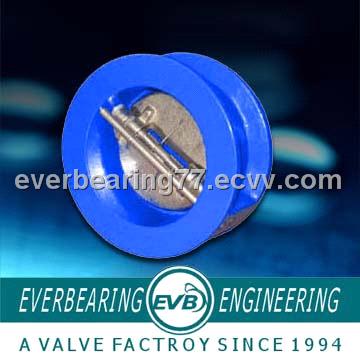

Double Disc Check Valve
| FOB Price: | 35.00 - 36.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Set/Sets per Week |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | PLYWOOD CASES |
Specifications
Material: GG25
Trade Term: FOB
Certification: ISO, CE, DQS
Pressure: PN16
Double Disc Check Valve
| Specification | Application | |||||
| Valve is used for preventing the back-going of medium in pipelines and equipments, and the pressure of medium will bring the result of opening and closing automatically. When the medium is back-going, valve disc will automaticaly closed to avoid accidents. | ||||||
| Face to face according to API594 ect. | ||||||
| Flange drilling according to ANSI125/150; DIN2501PN10/PN16; AS2129 Table E; JIS10K ect. | ||||||
| Working Pressure: PN10; PN16;150LB | ||||||
| Materials: ASTM A126A(B); WCB; CF8; CF8M; CF3M ect. | ||||||
| Materials | ||||||
| NO. | NAME | MATERIAL | ||||
| 1 | Body | GG25 | ||||
| 2 | Disc | SS316 | ||||
| 3 | Stem | SS410 | ||||
| 4 | Spring | SS304 | ||||
| 5 | Washer | PTFE | ||||
| 6 | Washer | PTFE | ||||
| 7 | Gasket | NBR | ||||
| 8 | Hex nut | A193 B | ||||
| Dimensions | ||||||
| c | D | D1 | D2 | L | R | t |
| 50 | 107 | 65 | 40 | 54 | 27 | 26.2 |
| 65 | 127 | 78 | 60 | 60 | 35 | 30.2 |
| 80 | 137 | 94 | 70 | 67 | 42 | 29 |
| 100 | 175 | 117 | 88 | 67 | 50 | 27.6 |
| 125 | 187 | 145 | 115 | 83 | 64 | 39.2 |
| 150 | 222 | 171 | 134 | 95 | 77 | 47 |
| 200 | 279 | 222 | 182 | 127 | 102.5 | 66.5 |
| 250 | 340 | 276 | 220 | 140 | 125 | 71.5 |
| 300 | 410 | 328 | 260 | 181 | 146 | 105.5 |
| 350 | 451 | 375 | 298 | 184.2 | 170 | 93 |
