H.264 Video Compression Integrative Real Time GPS Car Tracker with DVR

Specifications

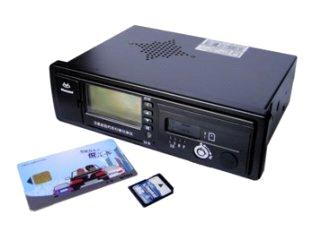

H.264 Video Compression Integrative Real Time GPS Car Tracker with DVR

Based digitization image compression storage and 3G wireless transmission technology, combined GPS tracking/monitoring, vehicle driving recorder, SD card high capacity storage, Driver IC card ID recognition, multiple data interface, voice calls and other features. Based vehicle’s standard embedded type structure to design, make it is easy to install. Meet the requirements of national standard GB-T 19056-2003/ Guangdong DB44/T578 standard.

Main Features:

  ● modularized functions design, integrated digital video storage (Digital Video Record), GPS monitoring, dispatching and management.

  ● Integration structure design, vehicle “single DIN” industrial standard size fit to install.

  ● Adopt 3G wireless transmission to achieve real time monitor the moving target.

  ● Build-in TTS voice report text module.

  ● Patent design for SD card protection to ensure the safety of image stored.

  ● It can update remotely, easy to maintain

  ● Broad intelligence interface to achieve automatic report station for bus, LED screen to release Ads

  ● Strong expansibility can connect with printer, report station device, fuel consumption detecting, LCD and others.

 Product Functions:

1.  Image: adopt H.264 technology to achieve the monitoring by 4 routes real time image, store image at regular time, event record, alarm record, image resolution D1/Half D1/CIFcan be select.

2.   SD storage: adopt high capacity SD card to store image, strong error correction feature, it is safety for image in the condition of inside vehicle.

3.   3Gimage transmission: Real time transmit/monitor video via PRS/3G, double code flow to transmit, adjustable transmission rate.

4.    reply image:4 routes image can be synchronous replay via DVR player, eplay according with the requirements, editing and storage, characters superposition, geographic info superposition.

5.   GPS monitoring:Automatic tracking, regions setting, geo-fence, GPS mileage statistics, vehicle mileage statistics, blind area supplementary report, traces storage, base station positioning.

6.Signal detecting and control: 8 routes switch signal input, 1 route vehicle speed sensor’s signal input, 2 routes analog signal input, 5 routes relay control output. Intelligence mode and forced mode to cut fuel/circuit, cameras’ power source control, user-defined backup output control.

7.   Alarm: SOS, parking over time alarm, speeding alarm, speeding early warning, fatigue driving alarm, deviation alarm, lost power alarm, low power alarm.

8.   Road detecting: road detecting, road detecting calculation, departure alarm, speeding alarm, entry/exit station report…

9.   Voice and phone call: hands free phone, remote listen in, voice reminding device, TTS voice report.

10. National standard/local standard: display communication info/vehicle driving info, collect/store info, recognize driver ID, parameters setting, import/export data and print out info.

11. Module for bus: automatic report station/manual report station inside/outside the bus, RFID driver attendance management can be achieved by this module.

12.Display screen:It can display the information like positioning, driving, dispatching and other data. Press key to check the message and set the menu.

13. Remote update: main device’s program was support to remote download; user can renew the program remotely.

14. Protection:

     Power saving mode: in this mode, GPS device’s working current will drop to30mA@12V when vehicle was in flameout.

   Car battery over discharge protection: it will switch to supply power by backup battery if car battery’s voltage is very low (10V±0.1V).

 Over voltage protection: it will cut the external circuit to protect GPS device if the voltage exceeds limit value (56V), backup battery can work for 1h.

Performance Parameters:

Product Configuration:

1. Standard configuration

1)       main device           1 pcs

2)       GSM antenna           1 pcs

3)       GPS antenna    1 pcs

4)  Hands free speaker

5)       Installation cables      1 set

6)       Mounting bracket      1 set

7)       Usage instructions(electronic edition)

8)       Warranty card

9)        Certification

2. Optional configurations

1), Accessories (relay) for cut fuel/circuit

2). Panic button

3)  TTS module (can be build-in)

4)   Driver ID recognition (optional)

5). External 629 printer

6). Camera and switching cable for camera

7). SD card
