Hangzhou Nante Machinery Co., Ltd.
China Manufacturer with main products: Single Girder Overhead Cranes, Double Girder Overhead Cranes, Gantry Crane |
Home
>Products Catalog > Single Girder Overhead Cranes > Hammer Pile Driving Equipmentfor Drilling Pile Construction
Related products from verified members
| Place of Origin: | Beijing in China |
|---|
Specifications
Hammer Pile Driving Equipmentfor Drilling Pile Construction
|
Place of Origin: |
Zhejiang, China |
|
Brand Name: |
Shuangpeng |
|
Model Number: |
ZJ1500 |
|
Certification: |
ISO9001:2008 |
|
Max. Lifting Load |
5t |
|
Span |
-- |
|
Max. Lifting Height |
-- |
|
Crane Travelling Speed |
-- |
|
Trolley Travelling Speed |
-- |

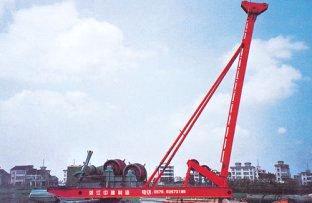

Punching Pile Driver is an important drilling machine of pile foundation construction, the main structure is main winch, secondary winch, frame, hammer, mud pump and operation counters.
Punching Pile Driver is mainly used for drilling pile construction, It has obvious advantages particularly in the pebble, boulder stratum conditions. Its working principle is to lift striking hammer to free-fall down strike repeatedly, split and smash the mud, rock in the drill or push them into drill hole wall, suspend them in drilling mud, and then dig out them by cut tube devices.
Although the construction of Punching Pile Driver is simple, and works slowly, compared with other construction methods, the overall consumption is the lowest one, that is one of the reason why many construction companies have chosen it as main Drill Pile equipment Meanwhile, compact soil wall around hole stables the wall, improves the bearing capacity of pile foundation, all have certain effect.
Punching Pile Drivers are widely used in the following applications:
1. Construction Site
General Drawing or Sketch or Draft Drawing
Technical Data
|
Technical Parameters of ZJ Series Punching Pile Driver |
||||
|
Parameter/Model |
ZJ900 |
ZJ1200 |
ZJ1500 |
ZJ2000 |
|
Diameter of Punching (mm) |
600-900 |
1000-1200 |
1200-1500 |
1500-2000 |
|
Depth of Punching(m) |
80 |
80 |
80 |
80 |
|
Model of Main Winch(Ton) |
JKL3 |
JKL5 |
JKL6 |
JKL8 |
|
Subsidiary Winch(Ton) |
JK1.5 |
JK1.5 |
JK1.5 |
JK2 |
|
S.W.LRated pulling(KN) |
30 |
50 |
60 |
80 |
|
Diameter of Main winch Wire Rope (mm) |
17 |
21.5 |
24 |
28 |
|
Power of Main winch Motor(KW) |
22 |
37 |
45 |
55 |
|
Punching Number (n/min) |
5-6 n/min |
|||
|
Diameter of Hammer(mm) |
φ600∼φ2200 |
|||
|
Weight of Punching Hammer |
2ton |
3ton |
4ton |
6ton |
|
Weight of Complete Machine |
5500kg |
6000kg |
6500kg |
9500kg |
|
Overall Dimension(mm) |
6000×2200×6300 |
7000×2000×7000 |
7000×2100×7200 |
7200×2000×7200 |
