Hangzhou Nante Machinery Co., Ltd.
China Manufacturer with main products: Single Girder Overhead Cranes, Double Girder Overhead Cranes, Gantry Crane |
Related products from verified members
| Place of Origin: | Beijing in China |
|---|
Specifications
|
Place of Origin: |
Zhejiang, China |
|
Brand Name: |
Shuangpeng |
|
Model Number: |
JM10t |
|
Certification: |
ISO9001:2008 |
|
Max. Lifting Load |
10t |
|
Span |
-- |
|
Max. Lifting Height |
-- |
|
Crane Travelling Speed |
-- |
|
Trolley Travelling Speed |
-- |
|
Minimum Order Quantity: |
1 |
|
Price: |
N/A |
|
Packaging Details: |
Naked |
|
Delivery Time: |
Within 2 months |
|
Payment Terms: |
L/C, T/T |
|
Supply Ability: |
400 Sets per Year |

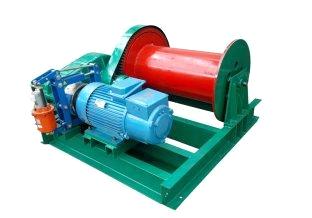

Nante manufactures and exports superior quality electric winches for its valuable clients based at several parts of the world. Electric winch is a device consisting of a horizontal cylinder turned back by a crank on which a cable or a rope wind is bound. These are compact and light weight material handling and lifting equipments, suitable for installation on cranes, davits and derricks.
Electric Winches are widely used in the following applications:
1. Cranes
2. Davits
3. Derricks
4. Marine
5. Punching driver
6 Construction Site and Port
Features:
1. The final drive gears are made of heat treated carbon steel that provides it a great strength.
2. It has an emergency crank handle.
3. Our product is available in AC and DC models also.
4. The front plate is made of stainless steel that provides a great rust resistance.
5. The die formed base of the equipment helps in quick mounting applications.
Technical Data
|
Model |
JM10 |
JM12 |
JM15 |
JM18 |
JM20 |
JM25 |
|
|
Max Load (KN) |
100 |
120 |
150 |
180 |
200 |
250 |
|
|
Rated Rope Speed (m/min) |
9 |
10 |
11.5 |
10 |
10 |
9 |
|
|
Rope Dia. (mm) |
φ 31 |
φ 34 |
φ 40 |
φ 36 |
φ 42 |
φ 44 |
|
|
Length of Rope(m) |
500 |
650 |
800 |
600 |
600 |
400 |
|
|
Motor Model |
YZR225M-8 |
YZR250M2-8 |
YZR280M-6 |
YZR280S-8 |
YZR280M-8 |
YZR280M-8 |
|
|
Power (kw) |
22 |
37 |
45 |
45 |
45 |
55 |
|
|
Figure |
Length(mm) |
2170 |
2020 |
2540 |
3040 |
3140 |
3140 |
|
Width(mm) |
3070 |
2300 |
2570 |
2350 |
2400 |
2400 |
|
|
Height(mm) |
1300 |
1600 |
1770 |
2100 |
2160 |
2100 |
|
|
Total Weight (kg) |
3500 |
5000 |
7500 |
9000 |
10000 |
11500 |
|
