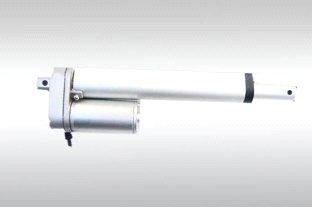

Electric Linear Actuator Motor FD5

Specifications

Summary

Linear actuator motor FD5is a kind of electric drive device. It turns the rotarymovementof the motor to the linear reciprocating movementof the actuator. It can be applied to various simple or complex processes as executive machinery, in order to realize the remote control, centralized control or automatic control. Linear actuator motor FD5is a universal auxiliary device driver. It can be widely used in electric power, machinery, metallurgy, transportation, furniture, petroleum, chemical industry, lifting, building, food processing industries, etc.The advantage of linear actuator motor FD5 is reliable performance, quick action, smooth operation, low noise, convenient installation, low price, etc.

Operating principle

The operating principle of linear actuator motor FD5is that after the motor slows down by the gear, leading to a pair of feed screw nut. It turns the rotarymovementof the motor to the linear reciprocating movement.The use of motor positive & negative finishes linear actuatormotor’s movement. For example, through all kinds of leverage, the joystick or connecting rod can complete the complex movement such as rotation and moving. By changing the lever arm length, can increase the stroke of linear actuator motor FD5.

Specifications

Installation note

(1) Check whether the electrical wiring is according with the requirements of the electrical principle and the power supply voltage is correct. The voltage is showed on the label of control box.

(2) Check whether the both installation ends of linear actuator motor FD5 is vertical, whether the fulcrum is packed well.

(3) When the power is connected, check whether the linear actuator motor FD5 travel agency is working properly with handset.

Notice for ordering

(1) Users reference series product specifications and installation dimension which our factory provides, and choose appropriate linear actuator motor, then put forward the linear actuator motor model, speed, push power, stroke, and minimum installation distance. If users have special requirements in the use of environment and technical data, our factory can also design for you, and you must show the specific requirements when place an order.

(2) If users need linear actuator motor accessories, such as control box, adapter and handset, our factory can supply a complete set, it also can be supplied alone.

(3) From the date of delivery within a year, the user in normal conditions, with the linear actuator motorquality issues caused by mechanical failure or damage, our factoryis responsible for maintenance.

(4) Welcome new and old customers place orders.
