>Products Catalog > Mobile Security DVR > 1/3 SONY CCD 420 TV Line Vehicle Surveillance Camera with 2.97.6mm Board Lens

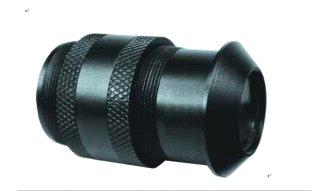

1/3 SONY CCD 420 TV Line Vehicle Surveillance Camera with 2.97.6mm Board Lens
| Payment Terms: | L/C |
|---|
Related products from verified members
| Place of Origin: | Beijing in China |
|---|
Specifications
1/3 SONY CCD 420 TV Line Vehicle Surveillance Camera with 2.97.6mm Board Lens
- It is small size
- This camera together with suitable for monitoring vehicle’s back /front/side etc
- Build-in microphone
- 1/3 SONY CCD
|
MODEL No. |
VC-CM-343CW-S |
|
Image Device |
1/3" sony CCD |
|
Horizontal Resolution |
420 TV Line |
|
Mirror Image |
Available |
|
Number of Pixels |
PAL: (H)752x(V)582; NTSC: (H)768x(V)494 |
|
Sync System |
Internal Synchronization |
|
Video output |
1Vp-p 75 Oms , Negative |
|
Audio output |
300mV at 600 Oms |
|
White Balance |
Auto |
|
S/N Ratio |
More Than 48dB (AGC off) |
|
Gamma Characteristic |
0.45 |
|
Minimum Illumination |
0 Lux (LED ON) |
|
Electronic Shutter |
PAL : 1/50~1/100, 000 Sec;NTSC : 1/60~1/100, 000 Sec, auto |
|
Built-In Lens |
2.97.6mm board lens |
|
Power Consumption |
12V±10%DC, 100mA |
|
Operation Temperature |
-10℃~ + 50℃, RH 95% Max |
|
Storage Temperature |
-20℃~ + 60℃, RH 95% Max |
|
Housing |
Black |
|
Dimension |
Ø23 X 48(MM) |
