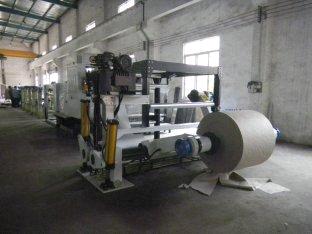

RCHM-1100/1400/1600/1700/1800/1900 Paper Converting Equipment，Sheeting Machine
| Payment Terms: | L/C |
|---|
Related products from verified members
| Place of Origin: | Beijing in China |
|---|
Specifications
RCHM-1100/1400/1600/1700/1800/1900 Paper Converting Equipment, Sheeting Machine
Brief Introduction:
The cutting paper weight rangs from 45gsm to550gsm , and the optional multiple positions of single mount unwinding stands sheeter can load and cut up to 14 rolls . Equipped with the optional automatic aligner, anti-static device , automatic paper loading and delivering units along with hydraulic unwind stand system and PLC controling system make operation more easier and simple.
Our RCHM1400/1600/1700/1800/1900 Series of sheeter can work with offset press , laminating and embossing machines as in-line sheeter .
Main Specifications:
1/Reference grammage of paper cutting:45gsm-550gsm
(15gsm-50gsm for tissue paper rolls sheeting)
(optional cutting knife up to 1000gsm)
2/Cutting accuracy: +/-0.3mm
3/Max.cuttting speed :400cuts/min (when sheeting length less than 1000mm)
4/Max.cutting speed 300m/min
5/Cutting length range: 450-1450mm
6/Max.unwinding diameter :1800mm
7/Max.unwinding width : 1600/1800mm, Max.sheet width: 550/1750mm
8/ Max.Paper stack height : 1300mm (available in custom design height)
9 /Gross weight : 11T/13T/14T/17T
Main Configurations:
Single rotary knife type sheeter
A-1 RCHM-1600/1800 AC Servo Paper sheeting unit
A-2 paper sheets adjustment system
A-3 Static eliminating system
A-4 Middle slitting and edge trimming system
A-5 Automatic sheets counting and label inserting system.
A-6 Paper sheets conveying system
A-7 Automatic pat trimming and paper delivery system
A-8 Electrical control system
A-9 Driving motor system
A-10 Accessory
A-11 Dual-limb hydraulic shaftless paper unwinding stands
(Optional multiple position unwinding stands for multiple tissue rolls loading and cutting up to 14rolls )
A-12 Automatic paper tension control system
A-13 Automatic web guid system(optional)
A-14 Vacuum suction system
