Metal Engraving Machine

FOB Price:	5,000.00 - 10,000.00 USD/Piece
Supply Ability:	200 Piece/Pieces per Month
Shipping:	12days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Wood Box

Specifications

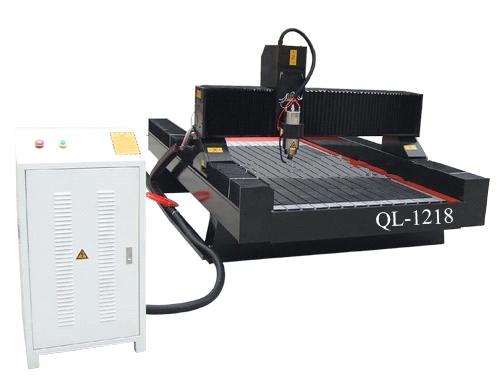

Metal Engraving Machine QL-1218

Characteristics:

1, a three-axis linear guide running smoothly, and high precision.
2, complete machine using seamless welding steel structure, rigid, and no deformation, the dorsal surface lining plate, strength, steel and good.
3, constant power spindle motor, cutting intensity, high efficiency.
4, the U-disk embedded control system completely offline to work more convenient and flexible.

Standard Configurations	Options
Square Tube Lathe Bed with water tank	DSP Control system
X Y with racks, all with square guides and dust cover
Axis Y with two motors
NCSTUDIO System
3.0 KW Spindle and Transducer
Large Leadshine driver
Auto Lubrication System
Max. speed 30-40m/min

Machine Model	QL-1218
X.Y working area	1200*1800mm
Z working area	300mm
Table	1300*1420mm
Max. Speed	6m/min
Max. working speed	4m/min
Working delicacy	0.005mm
Repositioning accuracy	0.05mm
Command	G code.u00.mmg*.plt
Surroundings for software	windows98/2000/xp
Power (spindle is not included)	1500w
Working voltage	AC380V/50Hz
Spindle power	3.0kw
Spindle rotating speed	0-24000rpm/min
Drive motor	Stepper
