arms hydraulic steady rest

Specifications

             Hydraulic steady rest :

Arms  steady rest is an apt design for holding long slender cylindrical jobs. This steady can be specially  used in CNC turning centers  by it’s compatibility of  programming &interfacing with the cnc system. Arms steady rests are  designed to get optimum result in accurate turning of long slender jobs .Arms steady rests are designed for getting  high productivity by eliminating rejection and the  setting time of manual steady rests.

Arms steady rests are  designed according to the customers’ requirement of job sizes. These are hydraulically operated steady rests.Side mounted and rear mounted cylinder designs are also available according to the bed design of lathes

Arms steady rests are at par to the international standard by manufacturing & design yet very competitive in price ! These steady rests are dimensionally interchangeable with any other similar models  available in the market.

• Machining of Long Slender Shafts
• Automatic Holding of Jobs In CNC Turning Machines.
• Crank Shaft Machining
• For Grinding Applications

Salient Features

• The Steady Rest Can Be Used For Any Machine Including CNC Lathes With a Suitable Bracket
• The Steady Can Also Be Used As A Travelling Steady Hence No Need Of A Follower Rest !!!
• Repeatability Is Within 5 Microns !!!!!!!!

Working principle

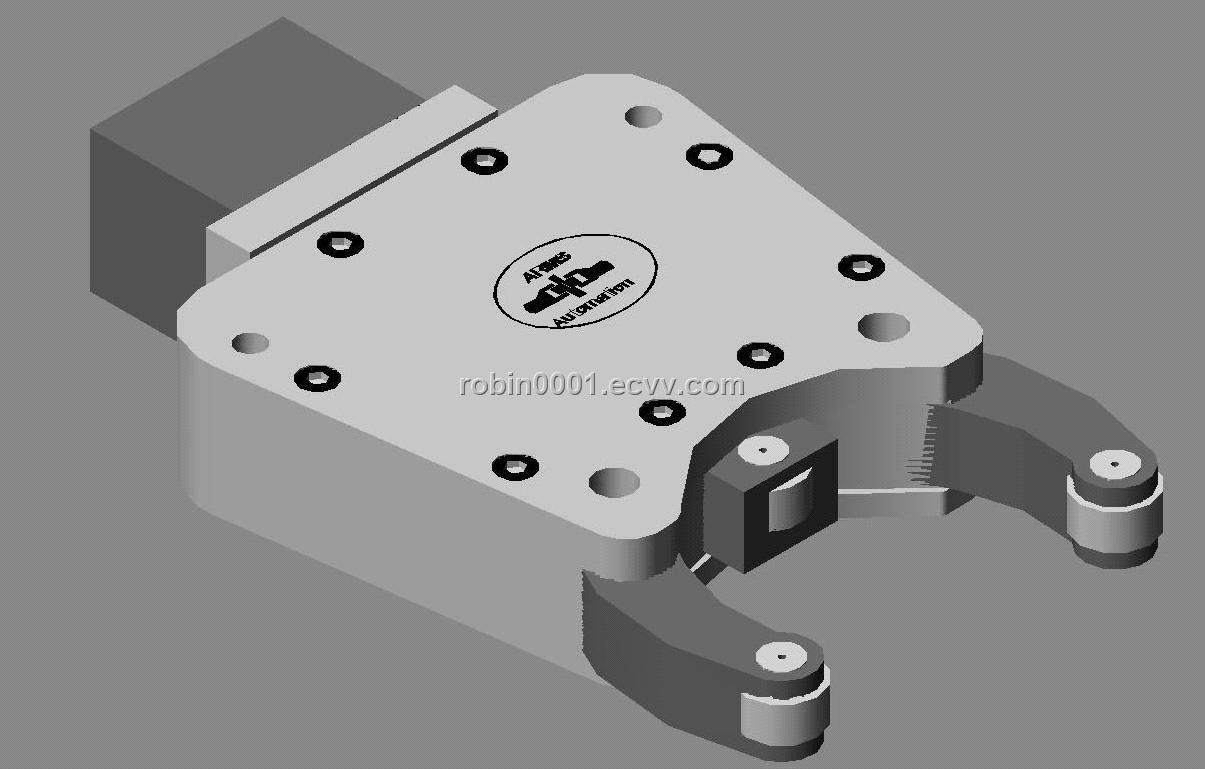

The steady rest consists of 3 arms assembled in a steel body with rollers at the arms for holding the work piece. The centre one brings the other two arms in a circular movement to hold the center of the work piece .This helps to get the repeatability and consistency in getting the centering accuracy The centre arm is operated by a hydraulic cylinder. The job holding rollers are lubricated through centralized lubricating system.

TYPES OF STEADY RESTS

• Hydraulic Self Centering Steady rest with rear mounted cylinder
• Hydraulic Self Centering Steady rest with side mounted cylinder
• Pneumatic Self Centering Steady rest
• Self Centering Steady rest with servo control
• Hydraulic Self Centering Steady rest for grinding.
• Hydraulic Self Centering steady rest for crank shaft grinding
• Hydraulic Self Centering steady rest for crank shaft turning
• Hydraulic Self Centering steady rest for cam shafts
• Hydraulic Self Centering steady rest for special purpose

STANDARD RANGE OF TURNING STEADY REST ARE THE FOLLOWING

How ever the steady rest can be designed as per customer’s requirement
