Specifications

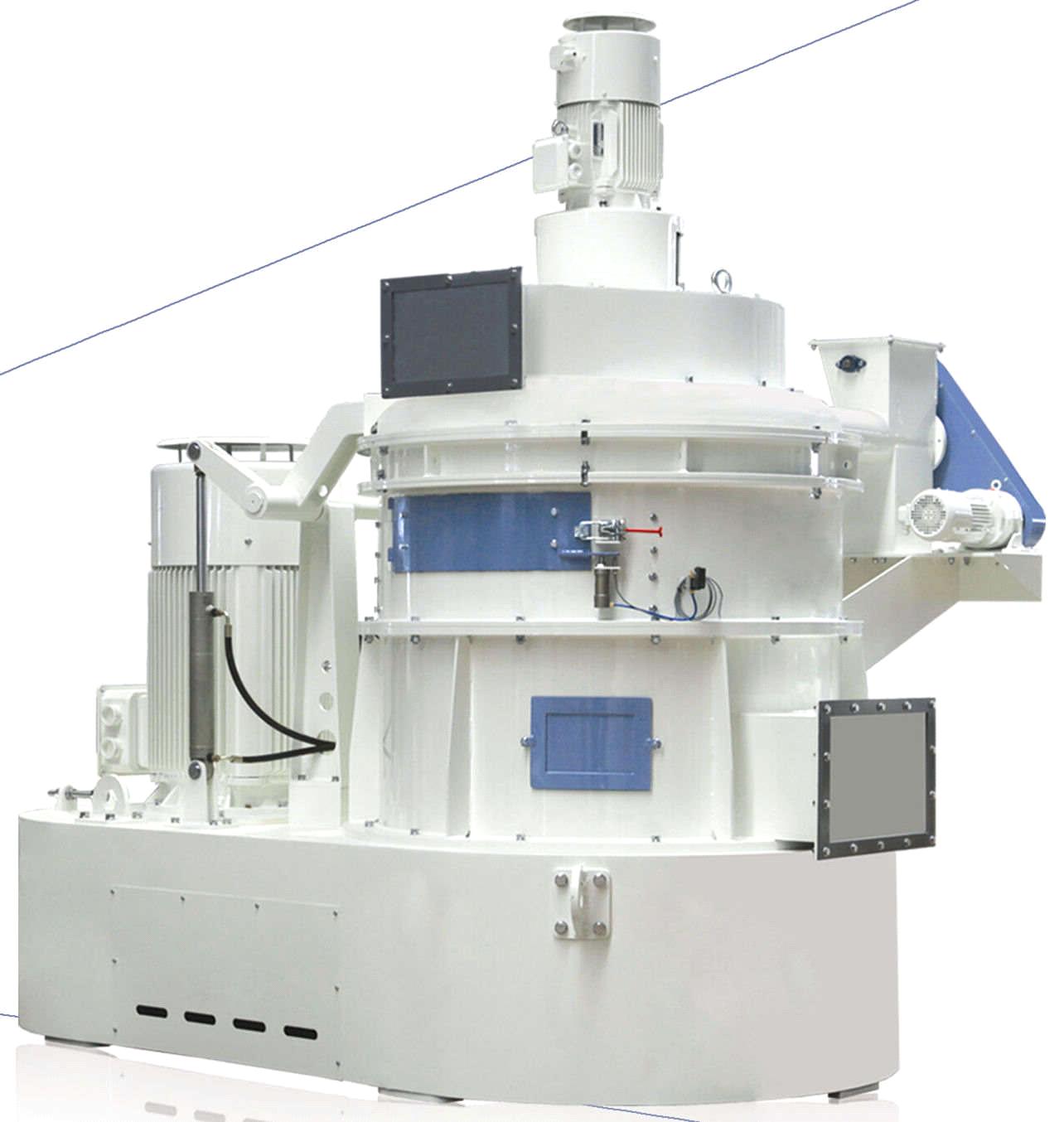

MUYANG Vertical Pulverizer
--Core technology update, Second leap in capacity
Four Technological Innovations:
√ On the basis of the Bernoulli Principle, recaculate,amend the surface parameters of the convex hood, airflow is improved;
√ According to Aerodynamics Principles, recalculation and redesign of screening and collecting system;
√ On the basis of physics law of conservation of energy and momentum, with effectively allocating internal grinding system, kinetic energy utilization ratio is promoted;
√ Taking military technology as standard,improving grinding components property and durability, thereby prolonging service life of wearing parts.
Advantage of system:■ Grinding System
Promote beating efficiency, reducing invalid power consumption,finally capacity increase while power consumption decline.
■ Grading System
One is that raising grading particles suction possibility to finally increase output;
And, two, achieve the grading effect under comparatively low rotating speed and grading efficiency can be elevated while power consumption of grading system can be lowered.
Performance Parameters:
Performance Parameters:
|
Type
|
Power of principal machine |
Grading power |
Feeding power |
Output |
|
SWFL82D
|
90
|
5.5
|
1.1
|
1.5-2.8(80 mesh, 95% passing rate)
|
|
SWFL110C
|
110
|
80
|
96-98
|
3.8
|
|
SWFL130E
|
132/160
|
11
|
1.5
|
4.0-6.5 |
Test Parameters:
| product | variety of feed |
measured current A principal/machine fan |
feeding power Hz |
grading power Hz |
crushing quantity kg |
crushing time min |
capacity t/h |
granularity 80 mesh |
ground material moisture % |
|
|
SWFL130E
power of principal machine
132kW
|
EP002 | 217 | 77 | 32.0 | 13 | 6226 | 89 | 4.20 | 96.7 | 8.41 |
| EP006 | 215 | 78 | 37.3 | 13 | 8192 | 98 | 5.02 | 95.6 | 8.65 | |
| EP005 | 215 | 76 | 26.0 | 14 | 9831 | 142 | 4.15 | 95.3 | 8.35 | |
| E605 | 220 | 77 | 34.0 | 13 | 5015 | 55 | 5.47 | 95.4 | 7.62 | |
| E315 | 210 | 77 | 33.0 | 12 | 23476 | 276 | 5.10 | 96.8 | 8.77 | |
Notes:above-mentioned datas are records during processing by SWFL130E pulverizer at some feed factory in Guangdong Province from 6-9 July,2010.
MUYANG Third Generation SWFL 110C Vertical Pulverizer :
√ After being updated and used in Tongwei of Guangdong and Dahai of Hainan, SWFL110C show a remarkable rise in performance.
√ power consumption decline by 52.7%, output per kilowatt-hour rise by 110%
√ grinding fineness 80 mesh(95% passing rate), production increase by 7200 tons during April to September,the production busy season.
* :according to production 20 hours every day, 30 days monthly calculation.
