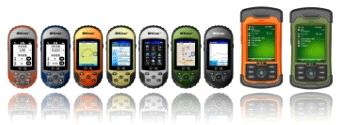

BHCnav GIS handheld controller M10
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
| M10 | M20 | M50 | M60P | |
| Core Configuration | ||||
| Processor | PXA 310 624MHz Processor | PXA 310 806MHz Processor | ||
| Memory | 256MB DDR | |||
| Storage | 256MB NandFlash | 521MB NandFlash | ||
| Storage Expansion | MicroSD card Slot |
one and an extra MicroSD card Slot |
||
| Optional Operating System |
Windows Mobile 6.1 Windows CE |
|||
| Display Resolution | 320×240 pixels(QVGA) | 640×480 pixels (VGA) | ||
| Screen | 8.9cm(3.5inch) color TFT LCD, Sunlight Readable Resistive Touch Screen | |||
| Size | 17.1 cm × 8.9 cm × 4.0 cm (6.7 in × 3.5 in × 1.6 in) | |||
| Weight | 0.339 kg (12 oz) 5 | |||
| Environment Adaptation 1 | ||||
| Operating temperature | –20 °C to +60 °C (–22 °F to +140 °F) | |||
| Storage temperature | –40 °C to +70 °C (–40 °F to +158 °F) | |||
| Sand and dust | IP67of Standard Test Passed | |||
| WaterProof | ||||
| Drop | 1.5 m (4.9 ft) onto plywood over concrete | |||
| Connection | ||||
| USB Host | × | Stantard | ||
| RS232 Module | × | Standard | ||
| Local Connections | Wireless LAN 802.11 b/g | |||
| Bluetooth | Supported | |||
| GSM 4 | × |
GSM/GPRS 850/900/1800/1900MHz |
WCDMA/UTMS 850/1900/2100 |
|
| WCDMA 4 | × | |||
| Interface | ||||
| Interface and other I/O | LoudSpeaker | |||
|
Headphone Jack, Microphone |
Headphone Jack, Stethoscope, Microphone | |||
| Basic Buttons Keyboard | Basic Buttons Keyboard with Backlight |
Numeric Keyboard with Backlight |
||
|
Touch Screen (Stylus Pens equiped), Soft Input Panel (SIP) virtual keyboard and Transcriber software (Handwriting recognition) |
||||
|
Antenna Interface on the body and Bluetooth interface to connect to and exchange data with Extra Antenna |
||||
| Camare | 3 MPixel fixed focus Camera | 5 Mpixel Camare | ||
| Flashlight | LED, Flashlight or light | |||
| Loudspeaker | Standard | |||
| Sensor | × |
Thermometer and Barometer E-compass |
||
| Gyroscope | × | 3-axis Gyroscope | ||
| Interface and other I/O | LoudSpeaker | |||
|
Headphone Jack, Microphone |
Headphone Jack, Stethoscope, Microphone | |||
| Basic Buttons Keyboard | Basic Buttons Keyboard with Backlight |
Numeric Keyboard with Backlight |
||
|
Touch Screen (Stylus Pens equiped), Soft Input Panel (SIP) virtual keyboard and Transcriber software (Handwriting recognition) |
||||
|
Antenna Interface on the body and Bluetooth interface to connect to and exchange data with Extra Antenna |
||||
| GNSS Performance | ||||
| GNSS | GPS | |||
| Channels | 48 | |||
| Power Supply |
Operating Time >15 hr ; Standby Time >30 days(Supplied by Standard battery) |
|||
| Integrated Real-Time | SBAS(WAAS, EGNOS, MSAS, GAGAN) 6 | |||
| Extral Antenna |
Connector for an external antenna As To mainstream GPS receivers, as a controller to RTK or GPS system |
|||
| Update Rate | 1Hz | |||
| Sensitivity | -148dBM(Receipting) / -163dBm(Tracking) | |||
| Data Protocols | NMEA-0183, SiRF Binary | |||
| Horizontal Real-time Accuracy | <2m 7 | |||
| Software and support | ||||
| Included Software |
Microsoft® ActiveSync® Microsoft Office Mobile® (Word Mobile, Excel Mobile, OneNote Mobile, PowerPoint Mobile, Outlook Mobile), Internet Explorer Mobile, Windows Explorer, Windows Live®, Messenger, Windows Media Player, Pictures & Videos, Contacts, Calendar, Tasks, Calculator |
|||
| Compatible/Opitional Software | TerraMap™/FieldMapper/ArcPad/TerraSync™ (in Windows Mobile verion) | |||
| Accessories |
International AC battery charger (100 V–240 V) 3000mAh 3.7V Li-ion battery (Standard, and Rechargable in units) One 2GB MicroSD card, USB data cable, CD preloaded with appointed source Screen protectors, Hand strap, 1 stylus pens with adaptive belt, Documentation |
|||
