Honto Denki Gear Motor Co., Ltd.
China Manufacturer with main products: Micro Motor, AC Motor, Gear Motor, Induction Motor, Torque Motor, Reversible Motor, Speed Control Motor, Magnetic Brake Motor |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Taiwan |
Specifications

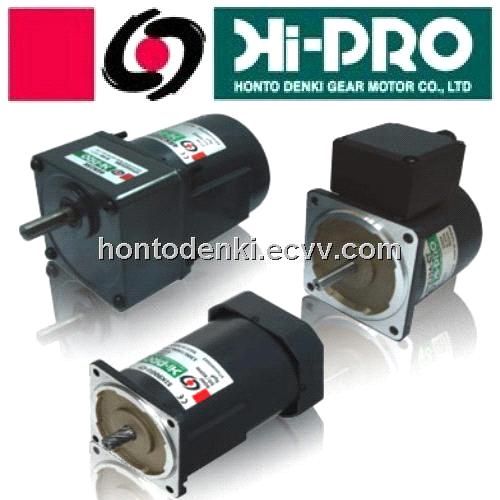

Induction Motor is use in continuously running situation and running in only one direction. It has single phase and three phase type. Two types of wiring which is lead wire and terminal box connection wiring.
- Output from 6W to 150W.
- Single phase and three phase are available.
- Four pole standard and high speed bipolar types are available.
- Both lead wire and terminal box connection is available.
- Insulation resistance: Use a DC500V high resistance gauge to measure the coil of motor and it's an outer shell when motor running in normal temperature and normal humidity, its value should be above 100MΩ.
- Insulation pressure endurance: Apply 60Hz, 1.5kV at the coil of motor and it's an outer shell for one minute without and extraordinary phenomenon when motor running in normal temperature and normal humidity.
- Temperature arises: Install two reduction gears or radiation plate of the same class at the motor. After rated running, test the coil by resistance method. Its value should be less than 80°C.
- Insulation Class: Class B (130°C).
- Overheat protection: Over heat shut down system.
- Environment temperature: -10°C~+50°C.
- Humid around the environment: Below 85% (No frosting happens).
