Fujian Boss Electrical Machinery Co., Ltd.
China Manufacturer with main products: Generator, Alternator, Genset, Diesel Generator |
Home
>Products Catalog > Diesel generator set > Hot! CE Approved 87.5KVA/70KW Lovol series silent Diesel Genset

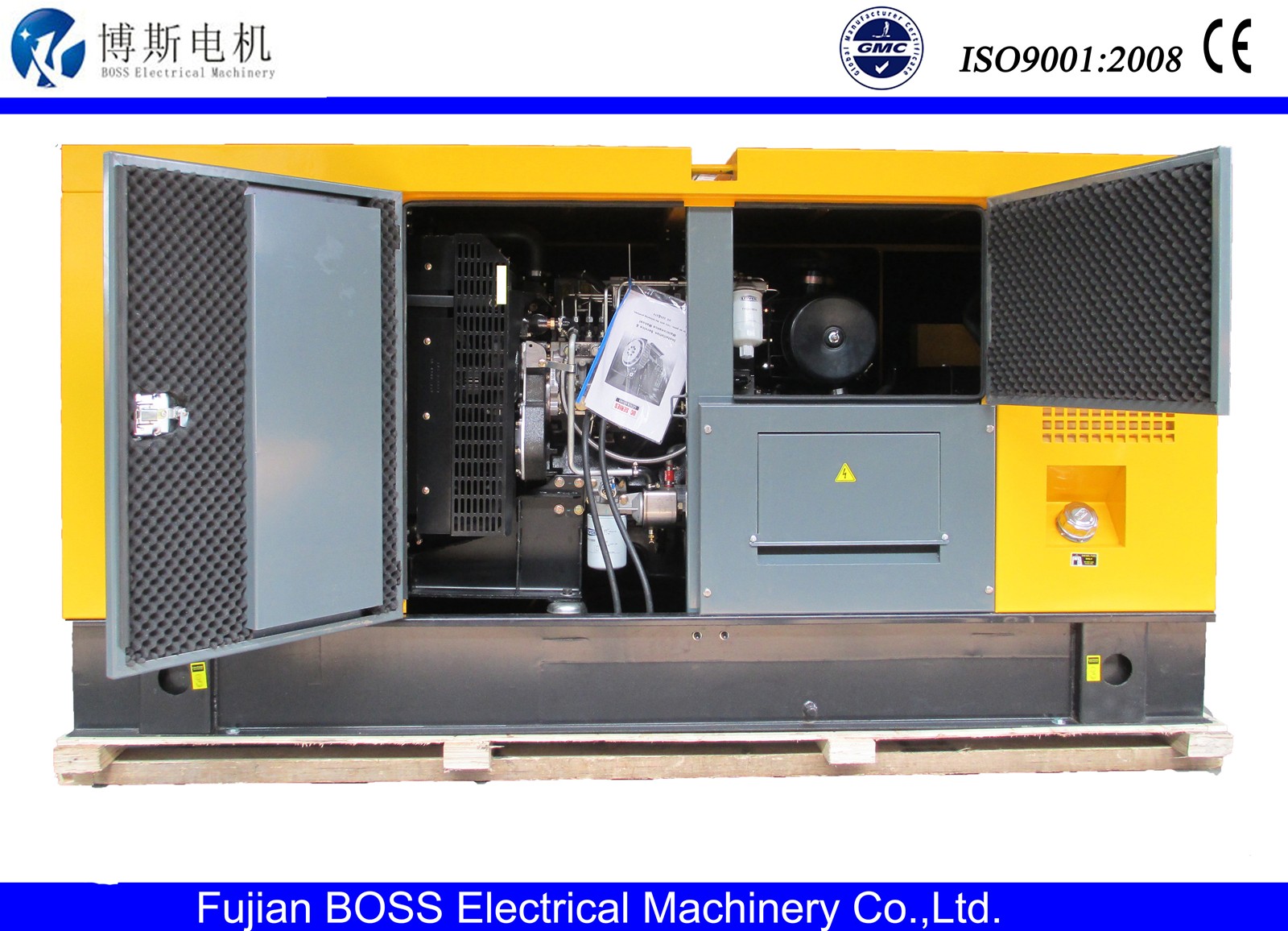

Hot! CE Approved 87.5KVA/70KW Lovol series silent Diesel Genset
| FOB Price: | 4,450.00 - 11,900.00 USD/Set |
|---|---|
| Shipping: | BY SEA |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | PLYWOOD CASE/STRETCH FILM |
Quick Details
- Brand Name: LOVOL
- Model Number: BS-70L
- Output Type: AC Three Phase
- Speed: 1500rpm
- Frequency: 50Hz
- Rated Power: 70KW
- Rated Voltage: 400V
- Rated Current: 126A
- Type: Diesel Generator
Specifications
KEY SPECIFICATION
LOVOL Diesel Generator Set
1.Brand: LOVOL
2.High-quality with ISO and EMC Certificate
3.With 1 year or 1000hours warranty
4.Power from 25kVA to 135kVA
LOVOL Diesel Generator Set
1.Brand: LOVOL
2.High-quality with ISO and EMC Certificate
3.With 1 year or 1000hours warranty
4.Power from 25kVA to 135kVA
Gensets' electric performance
Gensets compliance with all main standards,such as :GB/T2820,ISO8528,IEC34,VDE0875-N
Prime output power: 20kw-108 kw(25kva-135kva)
Rated voltage:400/230v, 440/254v, 220/127v, etc.
Phase/connecting method: 3 phase 4wire/Y type connection
Rated frequency: 50/60hz
Rated speed: 1500/1800rpm
Excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21～IP23
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40℃
Relative air humidity: ≤ 90%
Gensets compliance with all main standards,such as :GB/T2820,ISO8528,IEC34,VDE0875-N
Prime output power: 20kw-108 kw(25kva-135kva)
Rated voltage:400/230v, 440/254v, 220/127v, etc.
Phase/connecting method: 3 phase 4wire/Y type connection
Rated frequency: 50/60hz
Rated speed: 1500/1800rpm
Excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21～IP23
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40℃
Relative air humidity: ≤ 90%
| Genset Model | BS-70L | |
| Prime power | 87.5KVA/70KW | |
| Standby power | 96.25KVA/77KW | |
| Frequency | 50hz | |
| Speed | 1500rpm | |
| Voltage | 230/400v | |
| Phase | 3-phase | |
| ENGINE | Engine Manufacturer | Lovol |
| Model | 1006TG1A | |
| Prime/Standby power(KW) | 84.3/92.7 | |
| Cylinder Arrangement | 6 in line | |
| Cycle | 4 stroke | |
| Aspiration | Turbocharged | |
| Bore×Stroke (mm×mm) | 100 x 127 | |
| Displacement(Liter) | 5.99 | |
| Compression Ratio | 17.5:1 | |
| STARTING TYPE | Electric starting/DC24V | |
| Speed Stability (%) | Mechanical:3%-5% | |
| Electrical:≤1% | ||
| Speed Governor | Mechanical/Rotary Pump | |
| Cooling System | Water-cooled | |
| Total lubrication system capacity (L) | 16.1 | |
| Coolant capacity (with radiator) (L) | 29.5 | |
| Fuel Consumption at 100% Load (L/h) | 23.5 (at 1500RPM) | |
| Dimensions L*W*H(mm) | 1539*740*1107 | |
| Weight(KGS) | 710 | |
| ALTERNATOR | Manufacturer | BOSSPOWERS-Copy stamford |
| Model | UC224G | |
| Rated Voltage | 230/400V | |
| Voltage regulation mode | Auto | |
| EXCITATION MODE | single-bearing with SAE ,Brushless sychronous ,Three harmonic exciting, | |
| Power factor | 0.8 | |
| Capacity (Kva) | 85 | |
| Insulation class | H | |
| Protection class | IP21 | |
| CONFIGURATION TYPE | IMB35 WITH FLANGE ,2/4 pitch design | |
| DIMENSION(mm) | 880*490*780 | |
| weight (KGS) | ||
