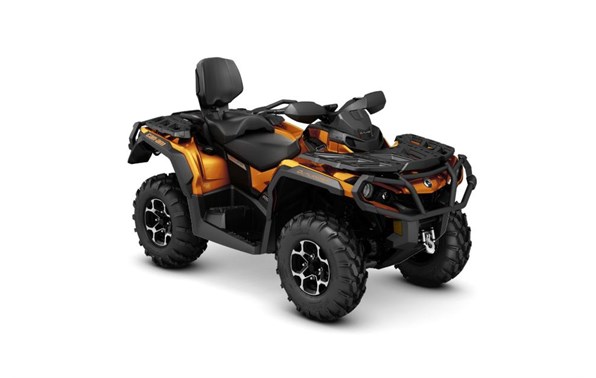

2016 Can-am Outlander Max Limited 1000 ATV

Specifications

Engine
Engine Type Rotax 89 hp
Displacement 976 cc
Cylinders V-twin
Engine Cooling Liquid
Fuel System Electronic Fuel Injection (EFI)
Starting System Electric
Chassis
Front Suspension Double A-arm
Front Travel 9 in. (22.9 cm)
Front Brake Type Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Front Tires Carlisle ACT radial 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
Rear Travel 9.3 in. (23.6 cm)
Rear Suspension Torsional Trailing arm Independent rear suspension (TTI)
Rear Brake Type Single 214 mm ventilated disc brake with hydraulic twin-piston calipers
Rear Tires Carlisle ACT radial 26 x 10 x 12 in. (66 x 25.4 x 30.5 cm)
Dimensions/Capacities
Dry Weight 824 lb. (374 kg)
Front Rack Capacity 100 lb. (45 kg)
Rear Rack Capacity 200 lb. (90 kg)
Towing Capacity 1,300 lb. (590 kg)
Fuel Capacity 5.4 gal. (20.5 L)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 91 x 46 x 53 in. (231 x 116.8 x 135 cm)
Wheelbase 59 in. (149.9 cm)
Drive Train
Drive Train Selectable 2WD / 4WD with Visco-Lok? QE auto-locking front differential
Transmission CVT, sub-transmission with high, low, park, neutral & reverse. Standard engine braking
General
Speedometer Standard: Digital
Tachometer Standard: Digital
Odometer Standard: Digital
Lighting 230-W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light

Highlights

    Rotax? V-twin engine
    Rear Air Control Suspension (ACS) with FOX? Air Assist shocks
    Continuously Variable Transmission (CVT) with engine braking
    Tri-Mode Dynamic Power Steering (DPS?)
    Garmin? Montana? 650t touchscreen GPS
    3,000-lb (1,361 kg) WARN? winch with roller fairlead
    Heavy-duty front and rear bumpers
    12-in. cast-aluminum wheels with LIMITED finish
    26-in. Carlisle? ACT radial tires
    Handlebar wind deflectors
    Multifunction Analog / Digital gauge
    Mudguards
    Comfort grips
    Painted plastics

Engines

    Type: 89 hp, Rotax 976 cc V-twin, liquid cooled
    Fuel Delivery System: Electronic Fuel Injection (EFI)
    Transmission: CVT, P / R / N / H / L, standard engine braking
    Drive Train: Selectable 2WD / 4WD with Visco-Lok QE auto-locking front differential
    Power Steering: Tri-Mode Dynamic Power Steering (DPS)

Suspensions

    Front Suspension: Double A-arm; 9 in. (22.9 cm) travel
    Front Shocks: Oil
    Rear Suspension: Torsional Trailing arm Independent rear suspension (TTI) 9.3 in. (23.6 cm) travel
    Rear Shocks: Air Control Suspension (ACS) with FOX Air Assist

Brakes

    Front: Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
    Rear: Single 214 mm ventilated disc brake with hydraulic twin-piston calipers

Tires / Wheels

    Front Tires: Carlisle ACT radial 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
    Rear Tires: Carlisle ACT radial 26 x 10 x 12 in. (66 x 25.4 x 30.5 cm)
    Wheels: 12 in. cast-aluminum with LIMITED finish

Dimensions / Capacities

    L x W x H: 94 x 46 x 53 in. (238.8 x 116.8 x 135 cm)
    Wheelbase: 59 in. (149.9 cm)
    Ground Clearance: 11 in. (27.9 cm)
    Seat Height: 34.5 in. (87.7 cm)
    Engine / Dry Weight*: 824 lb (374 kg)
    Rack Capacity: Front: 100 lb (45 kg); Rear: 200 lb (90 kg)
    Storage Capacity: Rear: 5.7 gal (21.4 L)
    Towing Capacity: 1,300 lb (590 kg)
    Fuel Capacity: 5.4 gal (20.5 L)

Features

    Gauge: Multifunction Digital: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock
    Winch: 3,000-lb (1,361 kg) WARN winch with roller fairlead
    Instrumentation: Integrated / removable Garmin Montana 650t touchscreen GPS, Lighter type DC outlet in console, standard connector in the back (15-A)
    Lighting: 230-W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
    Seat: Convertible Rack System (CRS)
    Anti-theft System Digitally Encoded Security System (D.E.S.S.?)
    Protection: Heavy-duty front & rear bumpers, handlebar wind deflectors, mudguards
