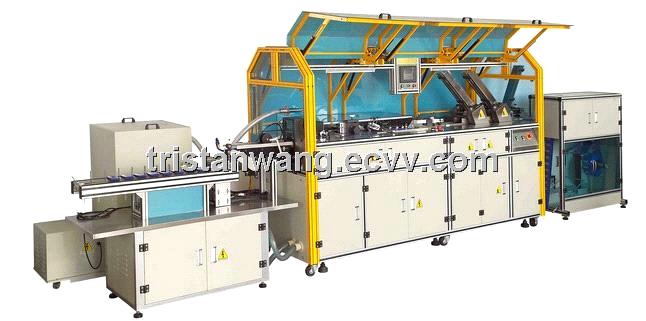

High-Speed card Ultrasonic Wrapping/Packing Machine

Shipping:	by sea/air
Payment Terms:	L/C, D/P, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	packed in strong fumigated wooden case

Quick Details

Brand Name: Mingsen
Model Number: HDB500
Productivity: 500pcs/min for standard cards
Standard card thickness: 0.2-2mm
Power: ~220V 50Hz
Air supply: 0.6-0.8Mpa
Total power: 12.5KW
Ambient temperature: 0-40degree
Humidity: 15~90%
Out-line dimension: 5500*1150*1800mm

Specifications

*Double grade ultrasonic sealing mode. Continuous high-speed card feeding and sealing with exact, reliable card positioning and elegant, tight card packing effect.

* Convenient touch screen operation interfaces in English/Chinese.

* Various personalized sealing patterns are available to secure safety against piracy.

* Packing modes for both single/double cards and card + leaflet. Packed cards can be separated to single cards or card chain in any preset card stack.

* Feeder is suitable for any cards or paper leaflets of thickness 0.02~3mm.

* Feeding thickness inspector guarantees no accidental twin cards are packed.

* Sealing edges of zigzag, letters or personalized designs are possible.

*Pack positioning device is optional to coincide the film logo with the card.

* Card serial number inspector is optional to secure correct card numbers and set up data records.
