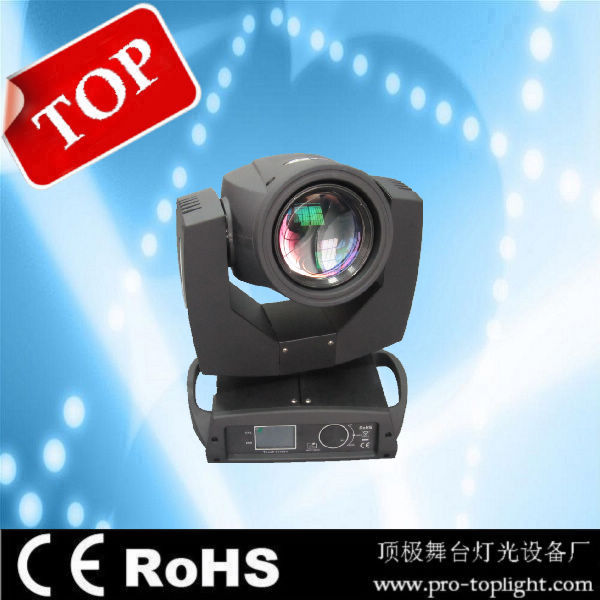

7R 230W sharpy beam moving head light

Supply Ability:	1,000 Piece/Pieces per Month
Shipping:	3-5 days for sample order; 15-20 days for mass quantity order
Payment Terms:	T/T, Western Union, Other, Paypal

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	packed by standard export cartons or flight case

Quick Details

Lamp Power(W): 230
CRI (Ra>): 80
Color Temperature(CCT): Cool White
Working Temperature(℃): -10 - 40
Working Lifetime(Hour): 50000
IP Rating: IP20
Certification: CE,ROHS
Emitting Color: RGB
Brand Name: TOP
Model Number: TP-901
Product name: 7R 230W sharpy beam moving head light
Lamp can be choose: OSRAM 7R 230W
Channel mode: 16CH or 20CH
Color Wheel: 14 colors with white, with rotating rainbow effect
Gobo Wheel: 17 gobos with rotating gradually change effect and pattern swing effect.
Focus: 5 meters to infinity.
Prism: 3 or 8 can be choosed
Frost: 0% - 100% linear frost
Power supply: AC110V-240V, 50 / 60HZ
size: 360X410X500

Specifications

Technical parameters:
Lamp can be choose: OSRAM 7R 230W.
Channel mode: 16CH or 20CH.
Level scanning: 540 ° (16bit precision scan) electronic error correction.
Vertical scanning: 250 ° (16bit precision scan) electronic error correction.
Color Wheel: 14 colors with white, with rotating rainbow effect.
Gobo Wheel: 17 gobos with rotating gradually change effect and pattern swing effect.
Shut: up to 13 times per second with automatic pulse effect.
Dimmer: 0-100% linear dimmer.
Focus: 5 meters to infinity.
Prism: 3 or 8 can be choosed.
Frost: 0% - 100% linear frost.
Control table reset function.
Control table switch bubble function (Switch on or off bulb can choose when with power)
Closed light half-power function.
Power supply: AC110V-240V, 50 / 60HZ.
The light body size: 360X410X500.

Channels:
CH 1: Color Wheel.
CH2: Stop/strobe.
CH3: Dimmer.
CH4: Static gobo change.
CH5: Prism insertion.
CH6: Prism rot rotation.
CH7: …. (reserve).
CH8: Frost.
CH9: Focus.
CH10: Pan.
CH11: Pan 16BIT.
CH12: Tilt.
CH13: Tilt 16BIT.
CH14: Function.
CH15: Reset.
CH16: Lamp control.
CH17: Pan-tilt time.
CH18: Color time.
CH19: Beam time.
CH20: Gobo time.
