Henan Fote Machinery Co., Ltd.
China Manufacturer with main products: Jaw Crusher, Mobile Crusher, Cone Crusher, Roller Crusher, Impact Crusher, Sand Making Machine, Dry Machine, Briquetting Machine |

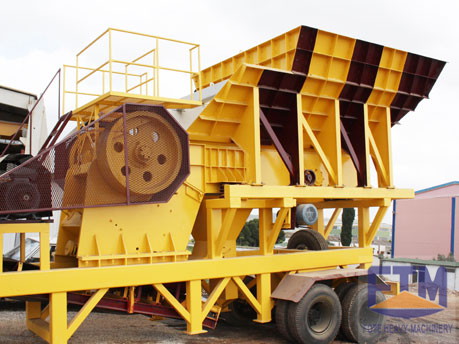

Recycling Limestone Mobile Jaw Crusher
| FOB Price: | 50,000.00 - 90,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Month |
| Shipping: | Within 0-25 working days after placing the order.Ocean freight partners: APL, COSCO, OOCL, CSCL, MSC |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Standard containers, bare main machine, motors and small parts are packed in wooden cases. |
Quick Details
- Condition: New
- Application: stone,ore ,etc.
- Motor Type: AC Motor
- Power(W): 160-300 kw
- Capacity(t/h): 90-650t/h
- Brand Name: Henan Fote
- Model Number: FTM series
- Dimension(L*W*H): refer to specification
- Weight: 39-92t
- Certification: ISO,CE,BV
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Name: Recycling Limestone Mobile Jaw Crusher
- Material: Casting steel
- Abrasive Resistance: Good
- Maintenance: Convenient
- Installation: Under technical guidance
- Market: Africa, Europe, Asia,etc
- Factory: 50,000 square meters closed workshops
- Technical service: The whole using life
- Maintenance: Convenient
- Running State: Stable
Specifications
Recycling Limestone Mobile Jaw Crusher Overview:
Recycling limestone mobile jaw crusher is a rock crushing plant newly researched and launched by our company and its composing parts include machine frame, jaw crusher, vibrating feeder, vibrating screen, conveyor belt, electric motor and control cabinet.
Recycling Limestone Mobile Jaw Crusher Applied Material:
Limestone, granite, basalt, andesite, iron ore, quartz, diabase, iron ore, gold ore, copper ore,etc.
Recycling Limestone Mobile Jaw Crusher Application:
Recycling limestone mobile jaw crusher specially adopts jaw crusher as the core minerals crushing equipment. Among all these mobile crusher plants, mobile jaw crusher plant is particularly suitable for hard rock crushing, such as taconite, granite, dark rock, corundum, Silicon carbide and quartzite, etc.
Recycling Limestone Mobile Jaw Crusher Advantages:
1. Recycling limestone mobile jaw crusher belongs to high performance mobile crushing station with big crushing ratio and strong crushing capacity.
2. The machines of this mobile crusher are integrated and the structure is compact, and it has low requirement for the working site.
3. The equipment adopts vehicle-mounted installation support and the equipment can be convenient and quickly stationed in the site.
4. The steering axis of traction is convenient for highway transportation and site penetration.
5. The short wheel base and small radium of turning circle make it convenient to drive in rugged and bad road environment of the crushing site.
6. It eliminates the barriers caused to the crushing process by the crushing site, environment and basic configuration.
Recycling Limestone Mobile Jaw Crusher Technical Data:
| Items | Unit | FTM938E69 | FTM1142E710 | FTM1349E912 | FTM11349EW86 | FTM1349EW110 |
| Transportation length | mm | 11910 | 13110 | 14610 | 14610 | 15410 |
| Transportation width | mm | 2550 | 2550 | 1950 | 1550 | 1950 |
| Transportation height | mm | 3650 | 4450 | 4500 | 4500 | 4500 |
| Max. length | mm | 12110 | 13310 | 14650 | 14650 | 15460 |
| Max. width | mm | 2900 | 2960 | 3310 | 3310 | 3310 |
| Max. height | mm | 4060 | 4820 | 5300 | 5300 | 5700 |
| Weight | t | 39 | 57 | 83 | 65 | 92 |
| Tyre configuration | Dual axial | Tri-axial | Tri-axial | Tri-axial | Tri-axial | |
| Jaw crusher | PE600*900 | PE750*1060 | PE900*1200 | PE860 | PE1100 | |
| Max. feeding size | mm | 480 | 630 | 750 | 730 | 940 |
| Adjustment range of discharging mouth | mm | 65-160 | 80-140 | 100-200 | 75-225 | 150-275 |
| Processing capacity | t/h | 90-180 | 110-320 | 220-450 | 150-500 | 300-650 |
| Vibrating feeder | GZD960*3800 | GZD1100*4200 | GZD1300*4900 | GZD1300*4900 | GZD1300*4900 | |
| Main belt conveyor | B800*8.5M | B1000*9M | B1200*9.5M | B1200*9.5M | B1200*9.5M | |
| Side discharging belt conveyor (optional) | B450*3M | B500*3.5M | B650*4M | B650*4M | B650*4M | |
| Genset (optional) | kw | 160 | 200 | 220 | 250 | 300 |
| De-ironing separator (optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 | RCYD(C)-12 | RCYD(C)-12 |
Delivery
We have developed long and good relationship with many shipping agents. Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.
Our Service Philosophy
1.Pre-sale services: enthusiasm
Provide you the prophase plan, process flow design and manufacturer equipment according to your special demand.
2.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
